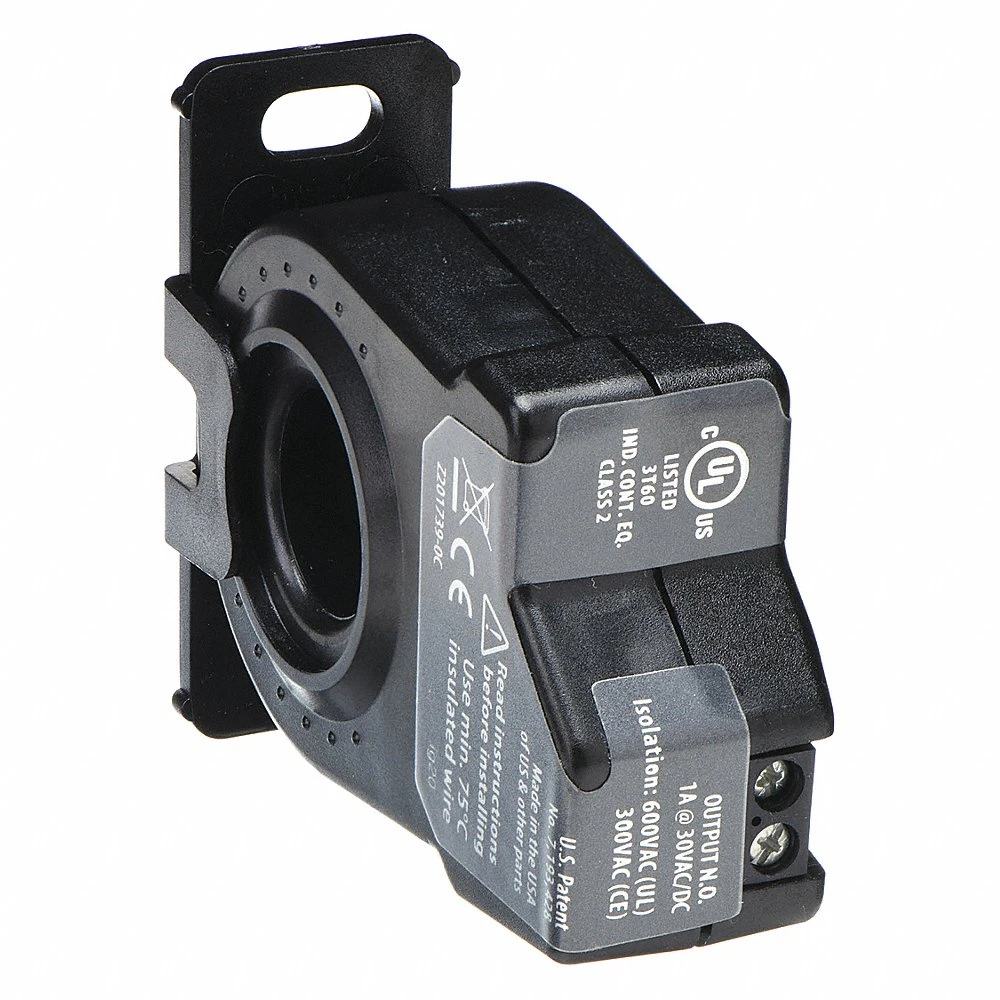

| Item | Current Sensing Switch |
| Amps | 0.1A |
| Body Depth | 22/25" |
| Body Height | 2.34" |
| Body Width | 1.85" |
| Compatible With Manufacturer Model No. | P28, P445, P45 |
| Compatible With Mfr. Model No. | P28, P445, P45 |
| Contact Amps | 0.1A |
| Contact Form | 1NO |
| Core Type | Solid |
| Electrical Connection | Pin , Terminal Strip |
| Electrical Phase | 3 |
| For Use With Mfr. Model Number | P28, P445, P45 |
| Max. Inrush Current | 200A |
| Monitored Parameters | Overcurrent, Undercurrent |
| Mounting | Foot Mounted |
| Mounting - Relay | Surface |
| Mounting Style | Surface |
| Overall Depth | 2.34" |
| Overall Height | 2.34" |
| Relay Mounting Style | Surface |
| Sensing Hole Diameter | 0.7" |
| Sensor Opening | 0.71" |
| Sensor Range | 0.5-200A |
| Socket Code Configurator | Surface |
| Trip Delay (sec.) | None |
| Trip Point | 0.5A |
| Trip Point Type | Fixed |
| Type | Solid |
| Contact Rating (ac) | 10A @ 260V |
| Contact Rating (dc) | 5A @ 30V |
| Electrical Connection Type | Pin |
| For Use With | HVAC, Pilot Circuit, Process Motors |
| Input Voltage | 0-30V AC/DC |
| Maximum Switching Voltage | 30V AC/DC |
| Standards | CCN NRNT (US), CCN NRNT7 (CANADA), NEMA 1, UL E190934 |
| Status Indicator | LED Indicator |
| Trip Delay | None |
| Weight | 0.6 lbs. |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 5.94 |
| Ship width (cm) | 10.92 |
| HS code | 9030330040 |
| Country of Origin | MX |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
R310AE-2C | Relay | €215.46 |
