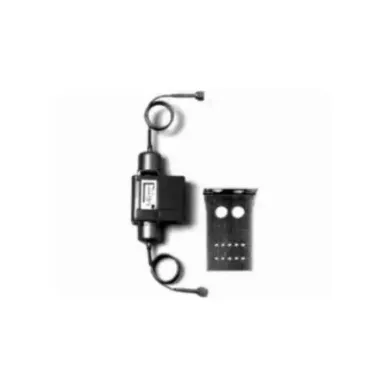

JOHNSON CONTROLS P74AA-1C Differential Pres Control, Spst Close
Get it by Tuesday, Jun 17
€308.20 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Control |
| Application | Motor Actuator Positioning, Prove Pump Operation, Refrigeration Compressors, Water Chillers, Water Coolers |
| Bellows Material | Stainless Steel |
| Capillary Tube Length | 36" |
| Contact Form | SPST |
| Contact Rating (ac) | 102A @ 240V, 112.2A @ 208V, 17A @ 240V, 18.7A @ 208V, 22A @ 120V (Non-Inductive), 22A @ 208V, 22A @ 240V, FLA: 20A @ 120V, LRA: 120A @ 120V |
| Housing Material | Steel |
| Includes | Universal Mounting Bracket |
| Maximum Operating Temperature | 104°F |
| Minimum Operating Temperature | 32°F |
| Overall Depth | 2 1/16" |
| Overall Height | 5 5/16" |
| Overall Width | 4" |
| Pressure Connection Gender | Female |
| Pressure Connection Size | 1/4" |
| Pressure Connection Type | Flare |
| Pressure Differential | 8 psi to 30 psi |
| Pressure Differential - Maximum | 30 psi |
| Pressure Differential - Minimum | 8 psi |
| Pressure Differential Adjustability | Adjustable |
| Pressure Range - Maximum | 70 psi |
| Pressure Range - Minimum | 8 psi |
| Pressure Type | Differential |
| Product Type | Differential Pressure Control |
| Rated Voltage | 208/240V |
| Reset Type | Automatic |
| Reset Type High Side | Manual |
| Series | P74 Series |
| Switch Action | Close on Fall |
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 13.49 |
| Ship length (cm) | 5.24 |
| Ship width (cm) | 10.16 |
| Country of Origin | MX |
