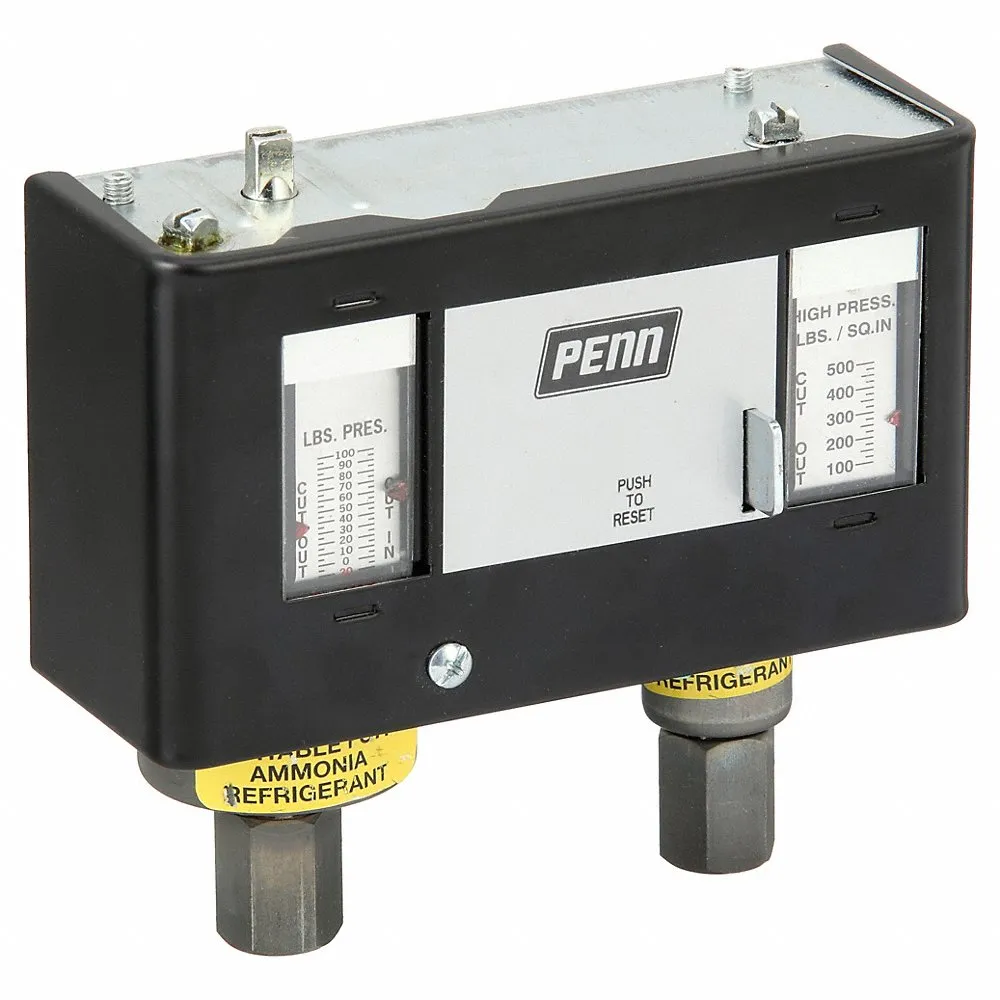

JOHNSON CONTROLS P70MA-2C Dual Pressure Control Spst
Get it by Tuesday, Jun 17
€589.45 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Dual Pressure Control |
| Application | Air Conditioning, Commercial Refrigeration |
| Capillary Tube Length | 36" |
| For Use With | Ammonia |
| High Pressure Differential | 55 psig |
| High Side Reset Type | Manual Reset |
| Housing Material | Steel |
| Includes | Universal Mounting Bracket |
| Max. Differential Pressure | 50 psi |
| Maximum Differential Pressure - High Side | Not Applicable |
| Maximum Pressure Range | 100 psi , 500 psi |
| Minimum Differential Pressure - High Side | Not Applicable |
| Minimum Differential Pressure - Low Side | 7 psi |
| Minimum Pressure Range - High Side | 100 psi |
| Overall Depth | 2 1/8" |
| Overall Width | 5 3/4" |
| Pressure Connection Gender | Female |
| Pressure Connection Size | 1/4" |
| Pressure Type | Differential |
| Reset High | Manual |
| Reset Low | Auto |
| Reset Type | Automatic Reset |
| Switch Action | Open On Fall, Open On Rise |
| Switch Type | SPST |
| Compatible Refrigerant | Non-Corrosive Refrigerants |
| Contact Form | SPST |
| Contact Rating (ac) | 102A @ 240V AC (Single Phase), 112.2A @ 208V AC, 15A @ 220V AC (Three Phase), 15.9A @ 208V AC, 17A @ 240V AC (Single Phase), 18.7A @ 208V AC, 22A @ 208V AC, 24A @ 120V AC (Non-Inductive), 24A @ 208V AC, 24A @ 220V AC (Three Phase), 24A @ 240V AC (Single Phase), 90A @ 220V AC (Three Phase), 95.4A @ 208V AC, FLA: 24A @ 120V AC, LRA: 144A @ 120V AC |
| Low Side Reset Type | Automatic Reset |
| Maximum Differential Pressure - Low Side | 50 psi |
| Maximum Pressure Range - High Side | 500 psi |
| Maximum Pressure Range - Low Side | 100 psi |
| Minimum Pressure Range - Low Side | 20 in. hg |
| Nema Rating | 1 |
| Pressure Connection Type | NPT |
| Process Connection | 1/4" Female NPT |
| Product Type | Dual Pressure Control |
| Series | P70 Series |
| Ship weight (kg) | 1.34 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 5.4 |
| Ship width (cm) | 14.61 |
| HS code | 9032200000 |
| Country of Origin | MX |
| Model | Item | Switch Type | Price | |
|---|---|---|---|---|
| P170LB-1C | Dual Pressure Control | SPST | €308.09 | |
| P170LB-6C | Dual Pressure Control | SPST | €285.25 | |
| P170MA-1C | Dual Pressure Control | SPST | €293.14 | |
| P170SA-1C | Dual Pressure Control | 2 SPDT | €284.41 | |
| P70LB-1C | Dual Pressure Control | SPST | €312.40 | |
| P70LB-6C | Dual Pressure Control | SPST | €310.27 | |
| P70MA-18C | Dual Pressure Control | SPST | €288.16 |
