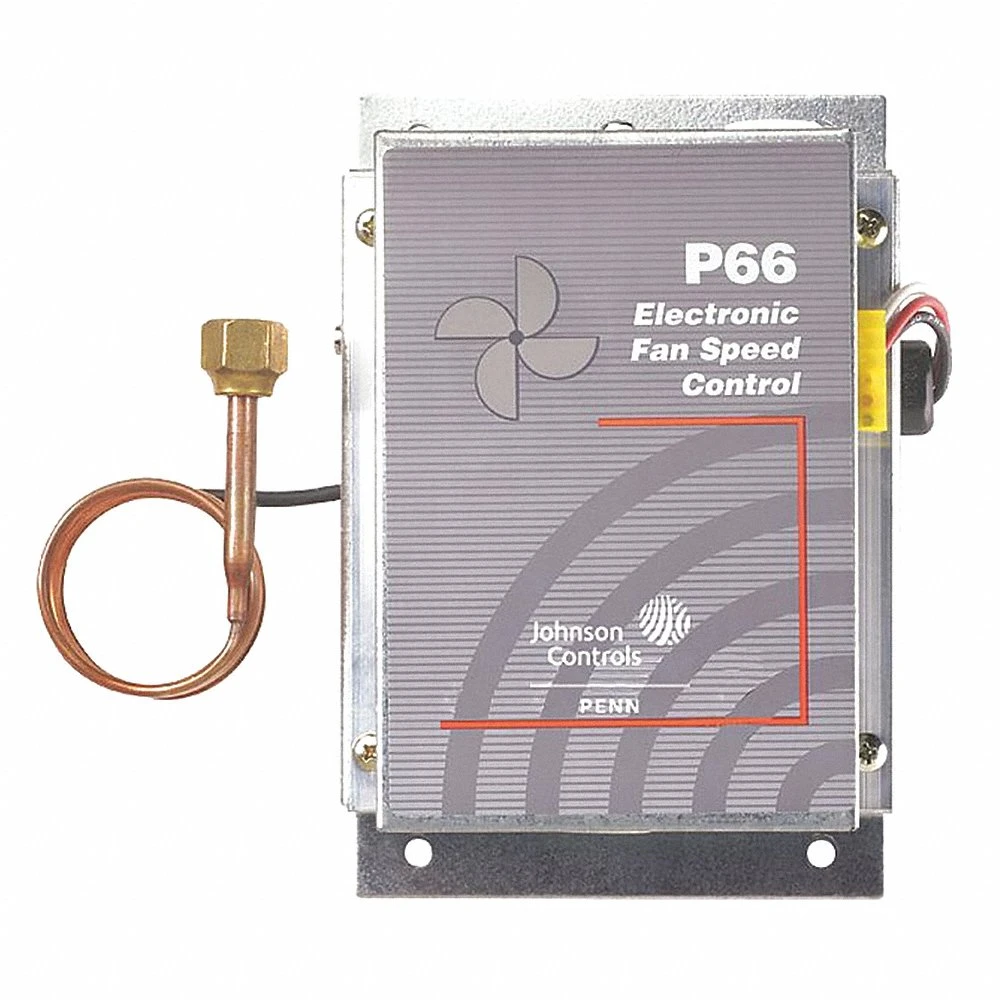

JOHNSON CONTROLS P66BAB-1C Condenser Fan Speed Control 190-250 Psi
Get it by Tuesday, Jun 17
€1,103.37 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Condenser Fan Speed Control |
| Ambient Temp. Range | -40°C to +54°C |
| Application | Air Conditioning, Heating, Refrigeration, Ventilation |
| Body Material | Steel |
| Capillary Tube Length | 5 ft. |
| Condenser Connection | 1/4" |
| Controls | Single Stage Condenser Fans |
| Electrical Connection Type | Quick Connect Terminals |
| Frequency | 60 Hz |
| Includes | Gaskets, Low Voltage Wire Leads |
| Input Sensor Type | Pressure Sensor |
| Items Controlled | Fans |
| Max. Control Pressure Setpoint | 250 psig |
| Max. Operating Pressure | 250 psig |
| Maximum Input Current | 1A |
| Maximum Overpressure Rating | 610 psig |
| Minimum Control Pressure Setpoint | 190 psig |
| Mounting Orientation | Vertical |
| No. Of Pressure Sensors Included | 2 |
| Number Of Mounting Holes | 2 |
| Output Amps | 8A |
| Overall Depth | 4 1/8" |
| Overall Height | 6 3/4" |
| Overall Width | 4 13/16" |
| Percentage Of Supply Voltage To Start | 10% |
| Pressure | 190 psi to 250 psi |
| Pressure Rating | 190 psi to 250 psi |
| Capillary Length | 5 ft. |
| Contact Form | SPST |
| Input Voltage | 208-480V AC |
| Maximum Control Pressure Setpoint | 250 psig |
| Maximum Temperature Setting | 130°F |
| Minimum Temperature Setting | -40°F |
| Nema Rating | 1 |
| Number Of Inputs | 2 Pressure Sensor |
| Number Of Pressure Sensors Included | 2 |
| Output Current | 8A |
| Product Type | Fan Speed Control |
| Series | P66 Series |
| Standards | UL LISTED |
| Ship weight (kg) | 1.94 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 10.48 |
| Ship width (cm) | 12.22 |
| HS code | 9032200000 |
| Country of Origin | MX |
