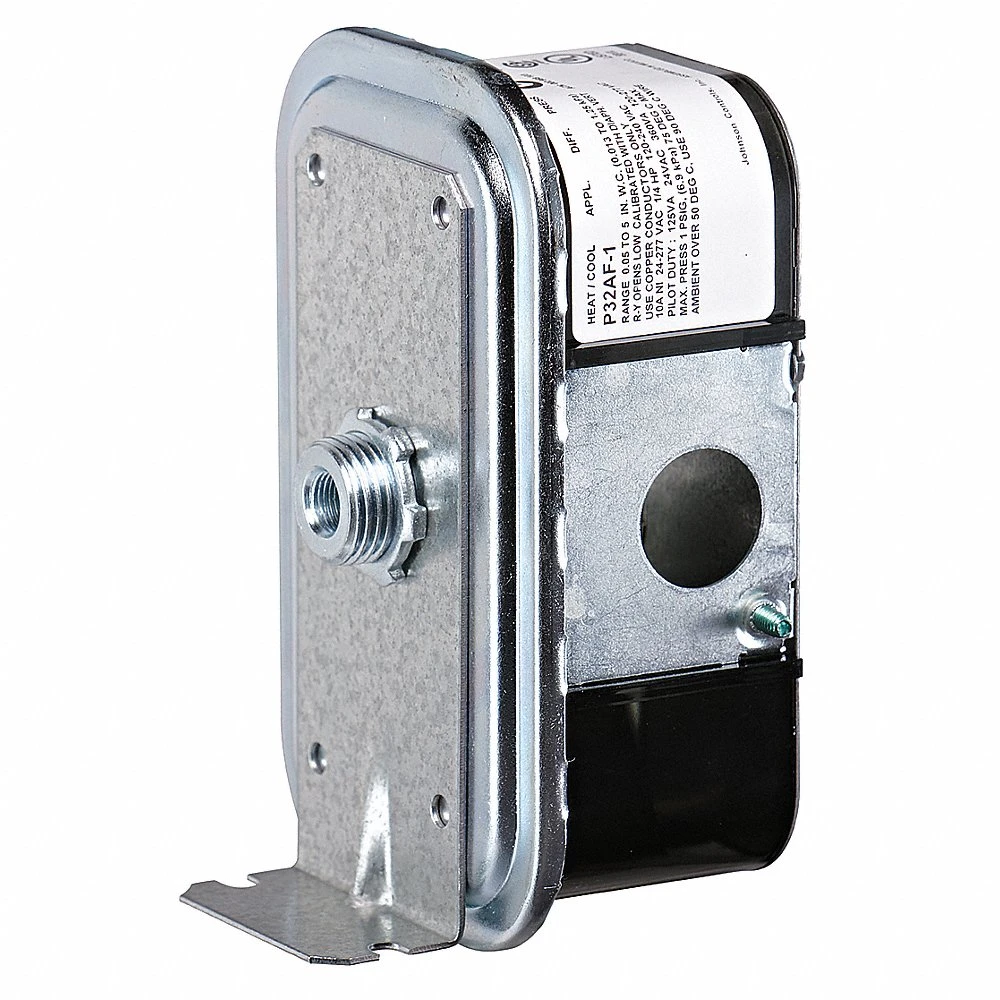

| Item | Differential Air Pressure Switch |
| Depth | 2 1/8" |
| Electrical Connection Type | Screw Terminals |
| Height | 5 5/8" |
| Housing Type | Conduit Box |
| Max. Pressure Rating | 1 psig |
| Mounting Location | Duct |
| Mounting Orientation | Any Position |
| Operating Temp. Range | -40°F to +165°F |
| Overall Depth | 2 1/8" |
| Overall Height | 5 5/8" |
| Overall Width | 3 1/4" |
| Pressure Setpoint Type | Adjustable |
| Pressure Type | Differential |
| Reset Type | Automatic Reset |
| Sample Line Connection Size | 1/8" |
| Sample Line Connector Type | Integral Compression |
| Type | General Purpose/HVAC |
| Width | 3 1/4" |
| Application | Air Flow Control, Duct Heater Control, Humidity Detection And Control |
| Contact Form | SPDT |
| Electrical Rating | 125 VA Pilot Duty @ 24V AC, 360 VA Pilot Duty @ 120 to 277V AC |
| For Pressure Type | Differential |
| Maximum Operating Temperature | 165°F |
| Maximum Pressure Rating | 1 psig |
| Minimum Operating Temperature | -40°F |
| Number Of Switches | 1 |
| Pressure Set Point | 0.05 in. wc to 5 in. wc |
| Product Type | Pressure Switch |
| Sample Line Connection | 1/8" Integral Compression |
| Switch Voltage | 120V AC/208V AC/240V AC/24V AC/277V AC |
| Switching Differential | 0.045 in. wc to 0.195 in. wc |
| Type Of Set Point | Adjustable |
