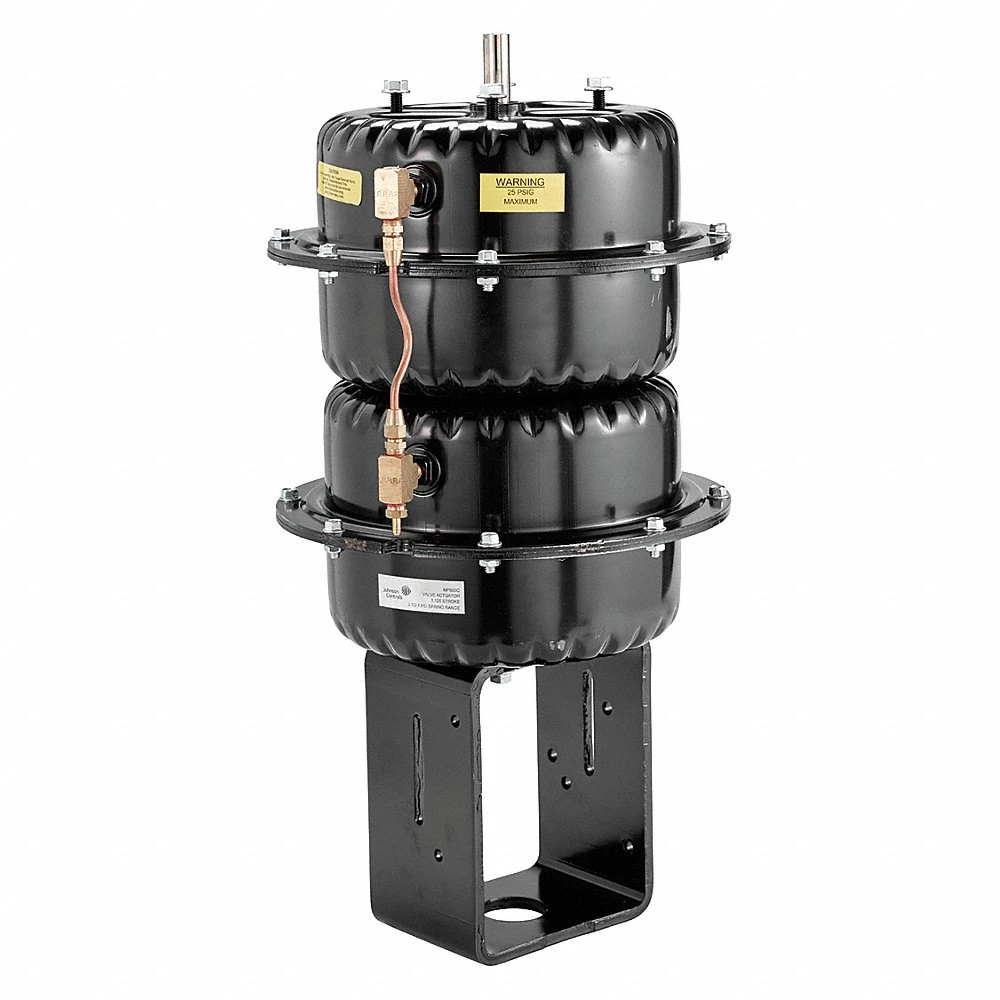

JOHNSON CONTROLS MP867C001G Pneumatic Valve Actuator 3 To 7 Spring
Get it by Tuesday, Jun 17
€3,138.37 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Pneumatic Valve Actuator |
| Air Connection Size | 1/4" |
| Air Connection Type | Barbed Hose |
| Application | Control Of Hot/Chilled Water |
| Height | 23" |
| Housing Material | Carbon Steel |
| Includes | Linkage |
| Includes Positioner | Positioner Not Included |
| Length | 11.812" |
| Max. Air Pressure | 25 psi |
| Mounting Style | Mounting Block |
| Nominal Spring Range | 3 psi to 7 psi |
| Operating Pressure | 0 psi to 25 psi |
| Overall Depth | 23" |
| Return Action | Spring Return |
| Specific Valve Action | Spring Return Up |
| Stem Material | Stainless Steel |
| Stroke | 1 1/2" |
| Width | 11.812" |
| Compatible Valve Size | 3", 4", 5", 6" |
| Compatible Valve Stem | N |
| Compatible Valve Type | Globe |
| Control Pressure - Maximum | 25 psi |
| Diaphragm Material | EPDM |
| Effective Diaphragm Area | 100 sq. in |
| Includes Mounting Kit | Valve Mounting Kit Included |
| Manufacturer Series | MP8000 |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | -20°F |
| Overall Length | 22 5/16" |
| Overall Width | 11 13/16" |
| Spring Material | Chrome Silicon Steel |
| Spring Range Maximum | 7 psi |
| Spring Range Minimum | 3 psi |
| Valve Action | Normally Open |
| Yoke Material | Steel |
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 58.42 |
| Ship length (cm) | 30 |
| Ship width (cm) | 30 |
| HS code | 8412310080 |
| Country of Origin | MX |
| Model | Height | Length | Stroke | Width | Price | |
|---|---|---|---|---|---|---|
| MP821C001 | 11" | 9 7/32" | 5/16" | 9 7/32" | €678.92 | |
| MP821D001 | 11" | 9 7/32" | 5/16" | 9 7/32" | €691.52 | |
| MP821E001 | 11" | 9 7/32" | 5/16" | 9 7/32" | €684.51 | |
| MP822C001 | 11" | 9 7/32" | 1/2" | 9 7/32" | €838.97 | |
| MP822D001 | 11" | 9 7/32" | 1/2" | 9 7/32" | €697.19 | |
| MP822E001 | 11" | 9 7/32" | 1/2" | 9 7/32" | €763.38 | |
| MP823C001 | 11" | 9 7/32" | 3/4" | 9 7/32" | €737.19 |
