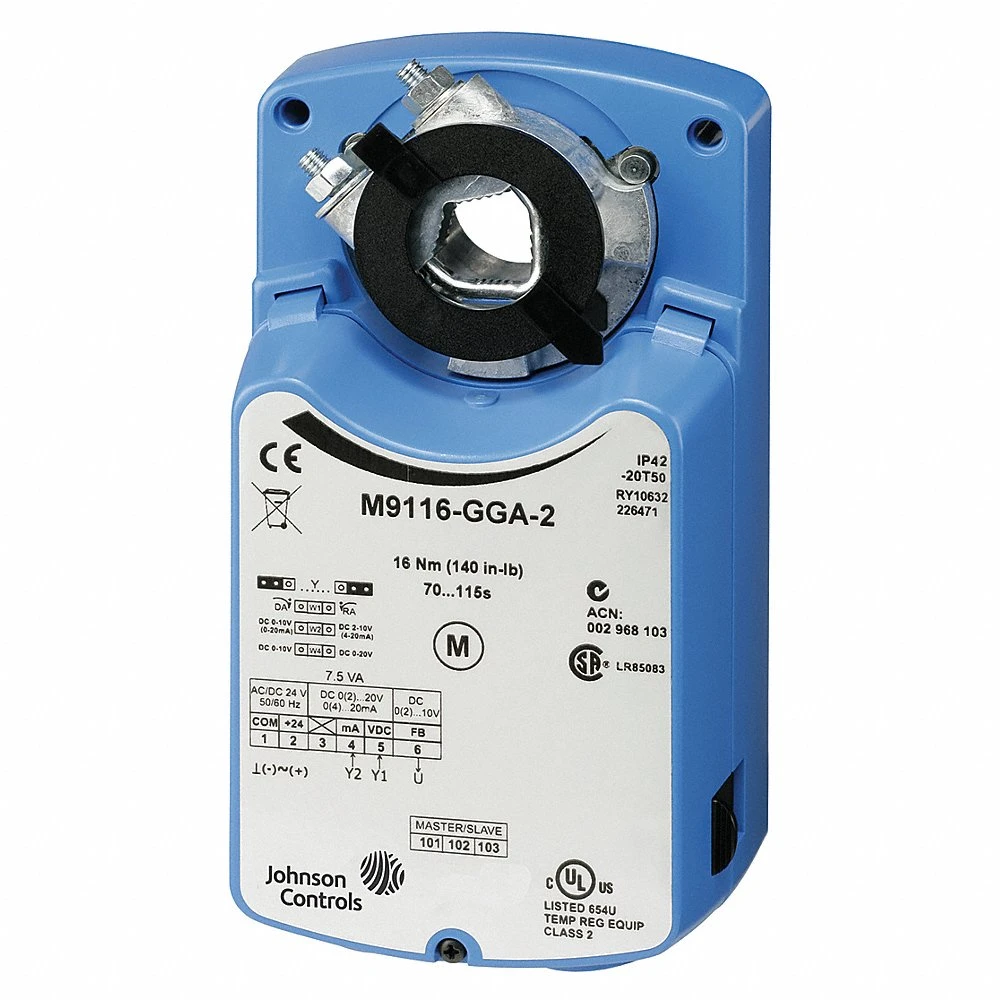

| Item | Electric Actuator |
| Ambient Temp. Range | 122°F |
| Application | Dampers, Valves |
| Depth | 2 11/16" , 2.688" |
| Electrical Connection Type | Screw Terminals |
| Electrical Connections | Screw Terminal |
| For Shaft Dia. | 3/4" |
| For Shaft Height | 5/8" |
| For Shaft Shape | Round, Square |
| For Shaft Width | 5/8" |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 6" |
| Includes | Anti-Rotation Bracket |
| Mounting Type | Direct , Direct Mount |
| Number Of Auxiliary Switches | 0 |
| Overall Depth | 2 5/8" |
| Overall Height | 6" |
| Overall Width | 4 1/4" |
| Power Consumption | 7.5 VA |
| Signal Type | Adjustable Start Stop , Proportional |
| Spring Return | No |
| Stroke Deg. | 90° |
| Time To Close | 115 sec. |
| Timing | 70 sec. to 115 sec. |
| Torque | 140 lbs.-in. |
| Type | Non Spring Return |
| Width | 4 1/4" |
| Control Signal | Proportional |
| For Shaft Diameter | 3/4" |
| Input Voltage | 24V AC/DC |
| Ip Rating | IP42 |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -4°F |
| Nema Rating | 2 |
| Output Signal | 0-10V DC |
| Product Type | Actuator |
| Rated Torque | 140 lbs.-in. |
| Return Action | Non-Spring Return |
| Shaft Rotation | CW/CCW |
| Standards | CE CERTIFIED EMC DIRECTIVE 2004/108/EC, CSA CERTIFIED C22.2 NO. 139, FILE LR85083, CLASS 3221 02, UL 873 CCN XAPX, FILE E27734 |
| Stroke Degree | 0° to 90° |
| System Application | Dampers, Valves |
