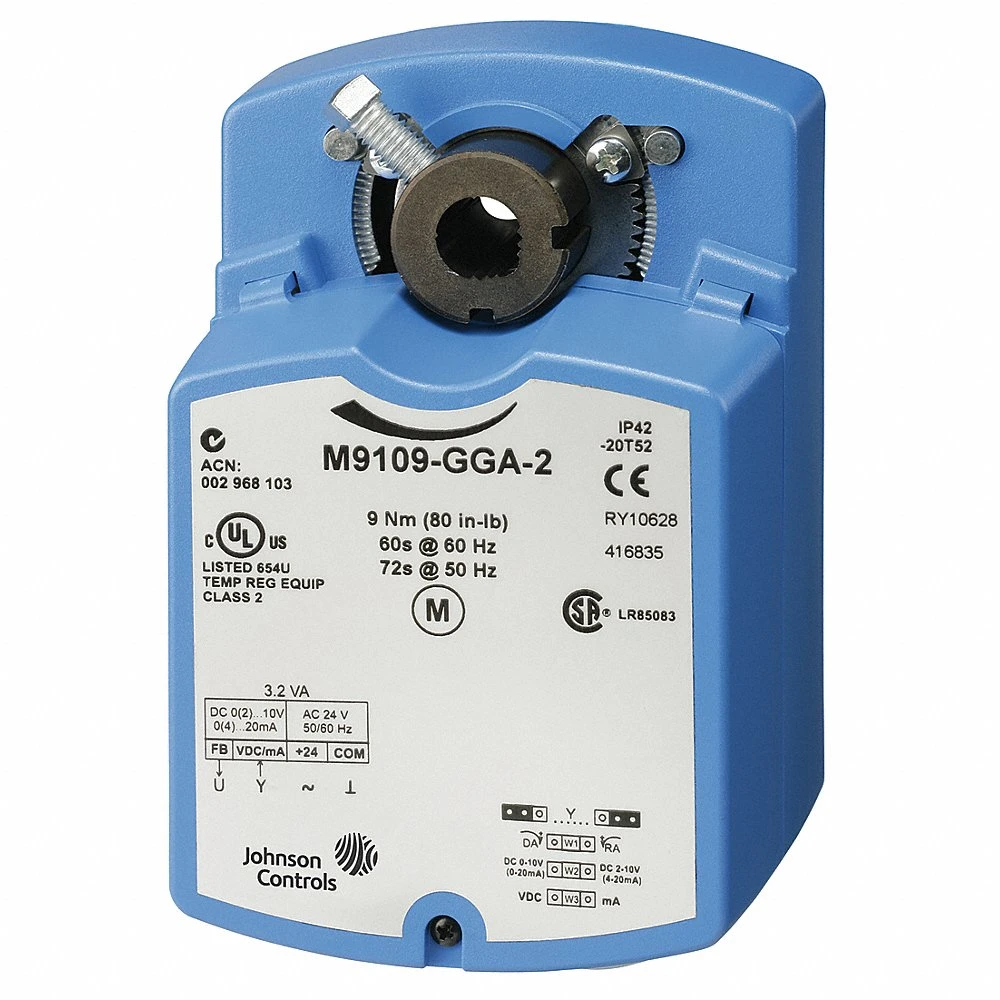

| Item | Electric Actuator |
| Ambient Temp. Range | 125°F |
| Depth | 2 11/16" , 2.688" |
| Electrical Connections | Spade Terminal |
| For Shaft Dia. | 1/2" |
| For Shaft Height | 3/8" |
| For Shaft Shape | Round, Square |
| For Shaft Width | 3/8" |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 6" |
| Includes | Anti-Rotation Bracket |
| Mounting Type | Direct , Direct Mount |
| Number Of Auxiliary Switches | 2 |
| Overall Depth | 2 3/4" |
| Overall Height | 6" |
| Overall Width | 4 1/4" |
| Power Consumption | 3.2 VA |
| Signal Type | Proportional |
| Spring Return | No |
| Stroke Deg. | 90° |
| Switch Type | Two Spdt |
| Time To Close | 60 sec. |
| Timing | 60 sec. |
| Torque | 80 lbs.-in. |
| Type | Non Spring Return |
| Width | 4 1/4" |
| Application | Damper And Valve |
| Contact Form | SPDT |
| Control Signal | Proportional |
| Electrical Connection Type | Plug In |
| For Shaft Diameter | 1/2" |
| Input Voltage | 24V AC |
| Ip Rating | IP32 |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -4°F |
| Nema Rating | 2 |
| Output Signal | 0-10V DC |
| Product Type | Actuator |
| Rated Torque | 79.6 lbs.-in. |
| Return Action | Non-Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Type | Self Centering Clamping |
| Standards | CE CERTIFIED |
| Stroke Degree | 90° |
| System Application | Dampers, VAV Boxes |
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 6.83 |
| Ship width (cm) | 10.8 |
| HS code | 8501104020 |
| Country of Origin | MX |
