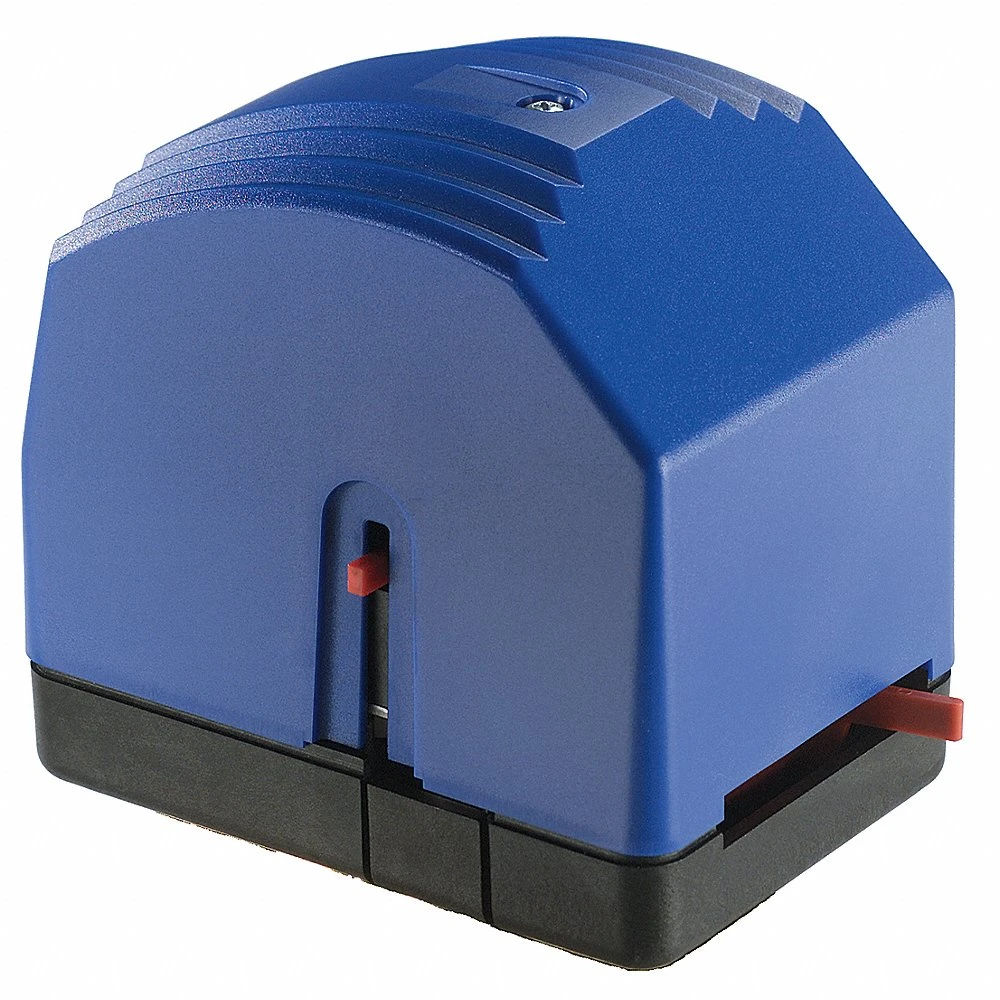

| Item | Zone Valve Actuator |
| Actuator Type | Normally Open |
| Application | Steam Control, Heat Exchangers, Chilled/Hot Water Control |
| Closeoff Pressure Type | Standard |
| Compatible Close-off Pressure | 50 psi |
| Compatible Valve Body Pattern | Three-Way, Two-Way |
| Control Signal | Proportional |
| Cycle Time | Not Rated |
| Depth | 2 3/8" |
| Electrical Connections | Terminal Block , Wire Harness |
| Electrical Lead Length | Not Applicable |
| Frequency | 60 Hz |
| Height | 2 3/4" |
| Housing Material | Brass |
| Installation Orientation | Horizontal, Vertical |
| Max. Water Temp. | 200°F |
| Nema Rating | Not Rated |
| Number Of Auxiliary Switches | 0 |
| Overall Depth | 2 3/8" |
| Overall Height | 2 3/4" |
| Overall Width | 3 1/4" |
| Return Action | Spring Return |
| Signal Type | Proportional |
| Stroke Length | Not Rated |
| Torque | Not Rated |
| Width | 3 1/4" |
| Compatible Valve Action | Normally Open |
| Compatible With Series | Series JM |
| Electrical Connection Type | Terminal Block |
| Includes Electrical Leads | Electrical Leads Not Included |
| Operating Temperature - Maximum | 200°F |
| Product Type | Electric Zone Valve Actuator |
| Standards | CE MARK, FILE E6688 OR E27734 CNN XAPX (U.S.) XAPX7 (CANADA), UL LISTED |
| Voltage | 24V AC |
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 6.03 |
| Ship width (cm) | 8.26 |
| HS code | 8501104020 |
| Country of Origin | US |
| Model | Height | Type Of Actuator | Voltage | Price | |
|---|---|---|---|---|---|
| JG13A020 | 2.375" | Normally Closed | 24 | €117.11 | |
| JG13B020 | 2.375" | Normally Closed | 120 | €117.54 | |
| JG14A020 | 2.375" | Normally Closed | 24 | €161.70 | |
| JG14B020 | 2.375" | Normally Closed | 120 | €164.17 | |
| JG23A020 | 2.375" | Normally Open | 24 | €134.66 | |
| JG23B020 | 2.375" | Normally Open | 120 | €134.66 | |
| JG24A020 | 2.375" | Normally Open | 24 | €185.01 |
