JOHNSON CONTROLS
JOHNSON CONTROLS D-4073-3 Damper Actuator 510 Spring With Universal Mounting Bracket | AF7END 20XH76

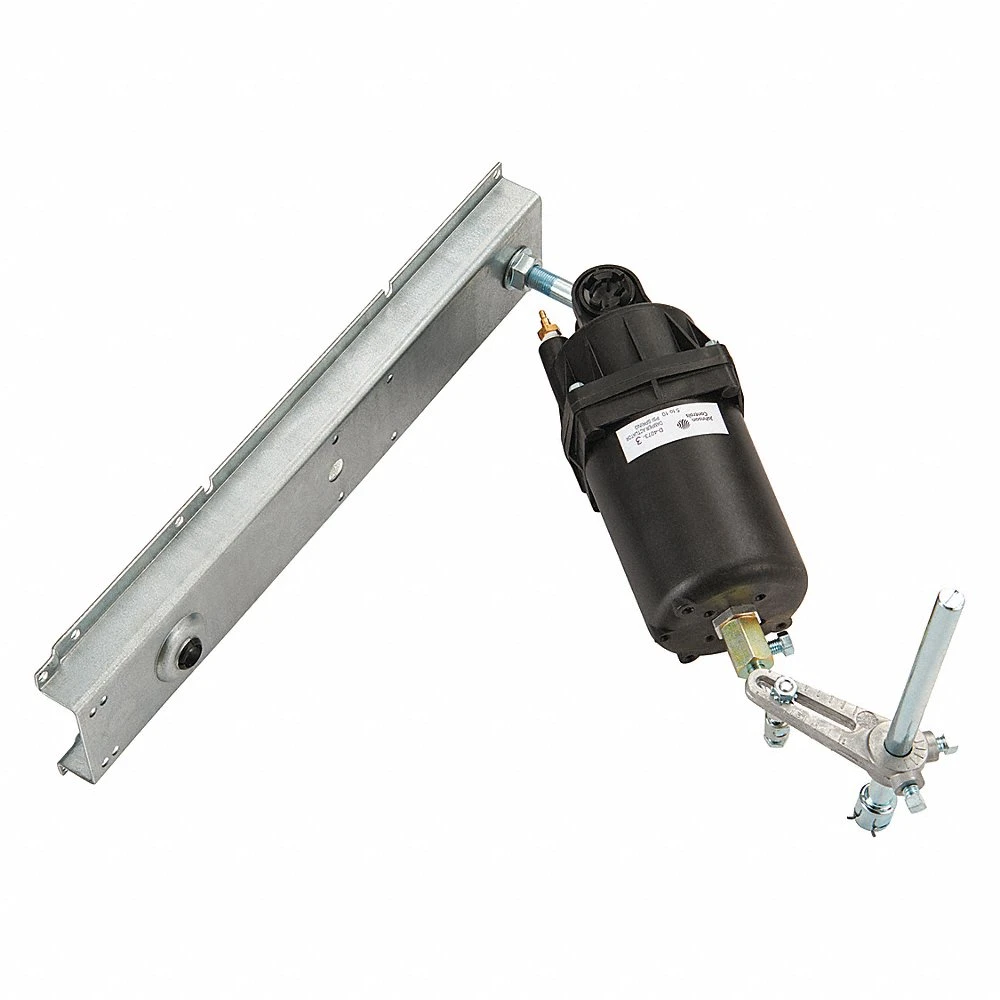

JOHNSON CONTROLS D-4073-3 Damper Actuator 510 Spring With Universal Mounting Bracket

In Stock
Item: AF7END Model: D-4073-3Cross Ref: 20XH76
Check Availability
See variants (8)

Get it by Jun 21, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€525.79 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemPneumatic Damper Actuator
ConnectionScrew Terminals
Control TypeTwo Outputs On/Off or Floating
Dimensions4-15/16"H x 3-3/8"W x 1-3/8"D
DisplayLCD
Height3.875"
Inputs3
Length11"
Max. Air Pressure25 psi
Mounting TypePivot
Nominal Spring Range5 to 10 psi
Operating Pressure0 to 20
Outputs6
Stroke3"
TypeDehumidification, Fan Control, Occupancy
Voltage24
Width3.88"

Shipping Info:

Ship weight (kg) 3.06
Ship height (cm)10.8
Ship length (cm)42.55
Ship width (cm)24.77
HS code8412310080

Product Details:

  • Net Force Exerted @ 0 PSI (34)
  • Net Force Exerted @ 18 PSI (67)
  • Provides: Gradual or Positive Actuation of Medium Dampers

Product Variants

ProductModelHeightItemLengthOperating PressureStrokeWidthPrice
JOHNSON CONTROLS D-3244-3 Damper Actuator 813 Spring With Pos | AF7ENA 20XH73 D-3244-323.625"Pneumatic Damper Actuator15.75"0 to 254"12"€1,672.10
JOHNSON CONTROLS D-3244-4 Damper Actuator 813 Spring With Swivel | AF7ENB 20XH74 D-3244-423.625"Pneumatic Damper Actuator15.75"0 to 254"12"€985.66
JOHNSON CONTROLS D-3246-1 Damper Actuator 813 Spring With Swivel | AF7ENC 20XH75 D-3246-128"Pneumatic Damper Actuator15.75"0 to 256"12"€1,752.45
JOHNSON CONTROLS D-4073-5 Pneumatic Actuator, 0 to 20, 8 to 13 psi, 3 Inch Stroke, 25 psi Max. Air Pressure | CR6AVT 38Y119 D-4073-5-Pneumatic Actuator----€446.11
JOHNSON CONTROLS D-4073-2 Pneumatic Actuator, 0 to 20, 8 to 13 psi, 3 Inch Stroke, 25 psi Max. Air Pressure | CR6AVU 38Y118 D-4073-2-Pneumatic Actuator----€536.03
JOHNSON CONTROLS D-3153-4 Pneumatic Actuator, 0 to 20, 8 to 13 psi, 3 Inch Stroke, 30 psi Max. Air Pressure | CR6AVV 38Y115 D-3153-4-Pneumatic Actuator----€933.83
JOHNSON CONTROLS D-3153-5 Pneumatic Actuator, 0 to 20, 8 to 13 psi, 3 Inch Stroke, 30 psi Max. Air Pressure | CR6AVW 38Y116 D-3153-5-Pneumatic Actuator----€628.01
