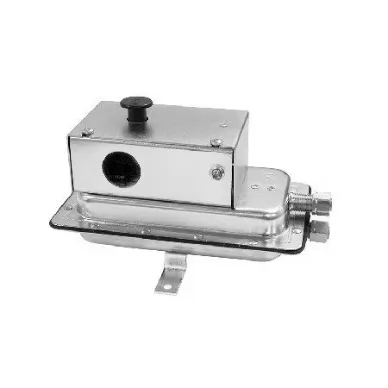

JOHNSON CONTROLS AFS-460-137 Dpdt with Man, Reset 24 Vac, 0.412 Inch Size
Get it by Tuesday, Jun 17
€186.41 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reset |
| Depth | 3 9/16" |
| Electrical Connection Type | Screw Terminals |
| Height | 6 1/8" |
| Housing Type | Standard Housing |
| Max. Pressure Setting | 0.5 psi |
| Mounting Orientation | Vertical |
| Pressure Setting Range | 0.5 psi |
| Reset Type | Manual Reset |
| Sample Line Connection Size | 1/4" |
| Sample Line Connector Type | Integral Compression |
| Type | Adjustable |
| Voltage | 24V AC |
| Width | 3 1/4" |
| Contact Form | SPST |
| Electrical Rating | 15A @ 120 to 277V AC |
| Pressure Set Point | 0.5 psi |
| Product Type | Pressure Switch |
| Sample Line Connection | 1/4" Integral Compression |
| Switch Voltage | 24V AC |
| Switching Differential | 0.06 in. wc to 0.8 in. wc |
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 15.49 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
