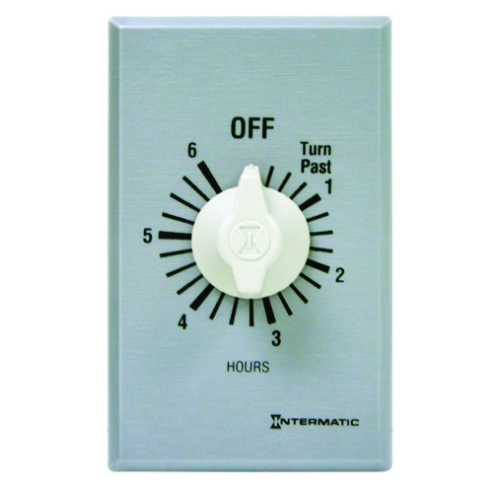

INTERMATIC FF46H Spring Wound Countdown Timer, Commercial, 125-277V AC, 50/60 Hz, DPST, 6 Max Hour
Get it by Tuesday, Jun 17
€77.37 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Countdown Timer |
| Amps Rating | 10/20A |
| Application Compatibilities | CFL, Fluorescent, Incandescent, LED |
| Color | Silver |
| Countdown Time | 6 hrs. |
| Depth | 1 1/4" |
| Height | 4 1/8" |
| Hold Mode Included | No |
| Hp @ 125v | 1 hp |
| Hp @ 250v | 2 hp |
| Includes Wall Plate | Yes |
| Input Voltage | 125-277V AC |
| Max. Operating Temp. | 120°F |
| Mechanism Type | Analog/Mechanical |
| Min. Operating Temp. | 40°F |
| Neutral Connection Required | No |
| Operation Mode | Countdown |
| Resistive Heater | 20A, 2500 W, 125V AC / 10A, 2500 W, 250V AC / 10A, 2770 W, 277V AC |
| Style | Commercial |
| Tungsten Incandescent Rating | 7A, 125V AC, 50/60 Hz, 875 W |
| Units Per Pallet | 1200 |
| Wall Plate Configurations | Multi Gang, Single Gang |
| Width | 1 3/4" |
| Wiring Configurations | Single |
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 10.48 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 4.45 |
| Country of Origin | TN |
