| Item | Spring |
| Applicable Ac Voltage Ranges | 125-277V AC |
| Application | HVAC, Lighting, Motor Controls |
| Body Color | Ivory |
| Compatible Lighting | Compact Fluorescent, Fluorescent, Incandescent, LED |
| Contact Form | SPST |
| Current Rating | 20A |
| Display Qty | 1 |
| Features | Automatically Limit Time for Energy Consuming Loads |
| Horsepower @ 120v - Maximum | 1 hp |
| Horsepower @ 240v - Maximum | 2 hp |
| Includes Hold | No Hold Included |
| Includes Wall Plate | Wall Plate Included |
| Overall Depth | 1 1/4" |
| Overall Height | 4 1/8" |
| Overall Width | 1 3/4" |

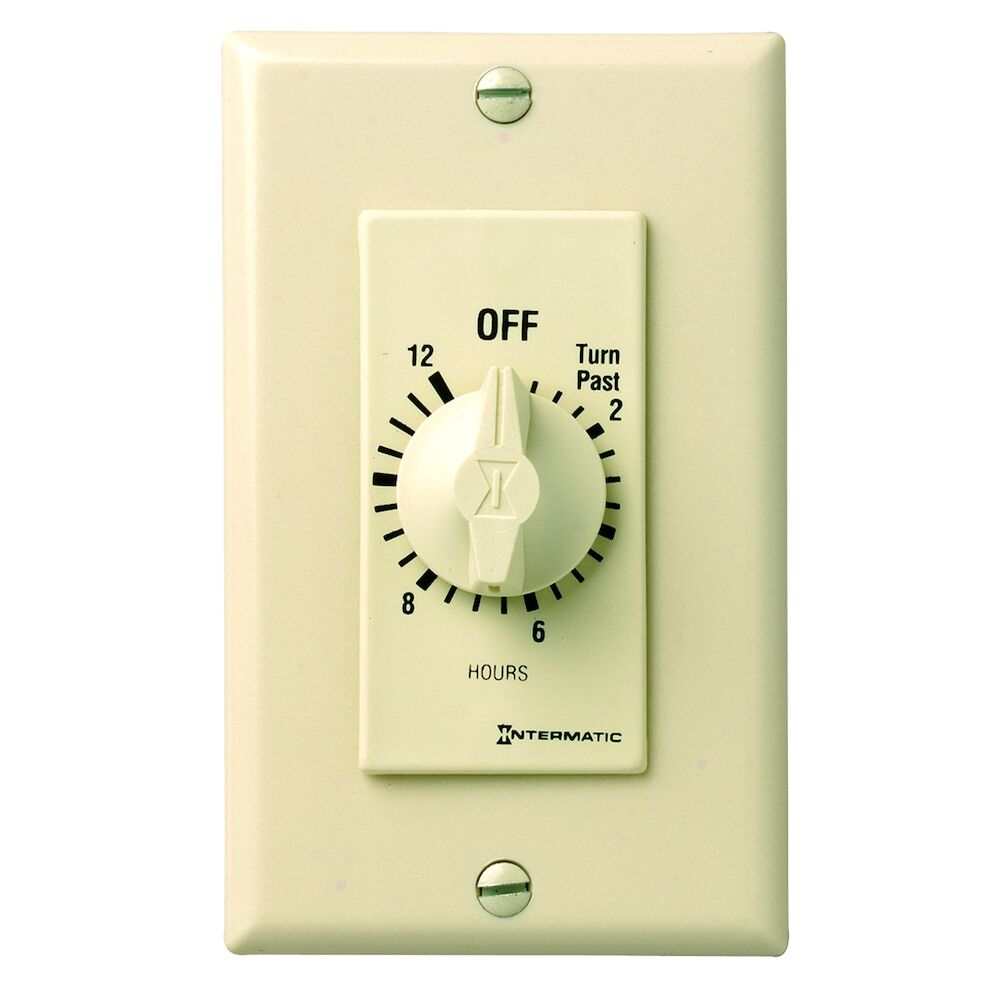

| Product Type | Spring-Wound Timer |
| Time Setting - Maximum | 12 hrs. |
| Timer Switch Type | Mechanical |
| Wattage - Maximum | 2770 W |
