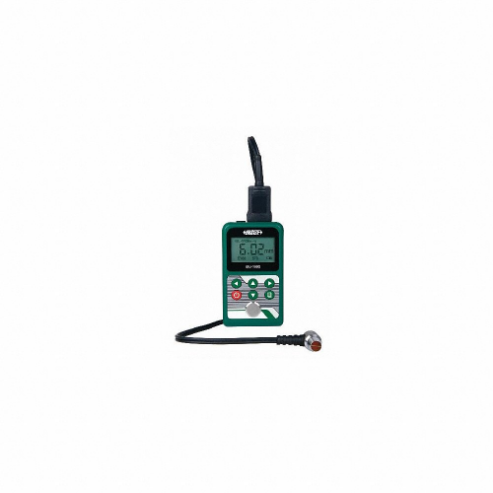

INSIZE ISU-100D Ultrasonic Thickness Gage
€1,322.78 /unit
Request a Quote
Payment
Payment
| Item | Ultrasonic Thickness Gauge |
| Batteries Included | Yes |
| Battery Chemistry | Alkaline |
| Battery Type | AAA |
| Calibration Certificate | NIST |
| Compatible Material | Brass, Copper, Glass, Polystyrene, Stainless Steel, Steel, Titanium |
| Includes | Couplant, Transducer |
| Maximum Thickness Measured | 11.811" |
| Measurement Range | 0.8 mm to 300 mm |
| Min. Thickness Measured | 0.31" |
| No. Of Batteries Required | 2 |
| Number Of Digits | 3 |
| Power Source | Battery |
| Thickness Measurement Accuracy | -0.05 mm to +0.05 mm |
| Thickness Measurement Resolution | 0.001" |
| Type | Electronic |
| Battery Size | AAA |
| Battery Voltage | 1.5V |
| Calibration Certificate Type | NIST |
| Certificate Of Calibration | Included |
| Digital Display Screen Type | LCD With Backlight |
| Gauge Type | Standard |
| Maximum Frequency | 5 MHz |
| Maximum Operating Temperature | 122°F |
| Maximum Velocity | 9.999 mps |
| Minimum Frequency | 5 Hz |
| Minimum Operating Temperature | -4°F |
| Minimum Thickness Measured | 0.31" |
| Minimum Velocity | 1 mps |
| Number Of Batteries Required | 2 |
| Ship weight (kg) | 1.58 |
| Country of Origin | CN |
| Product | Model | Price | |
|---|---|---|---|
 |
ISU-250C | €4,662.11 | RFQ
|
