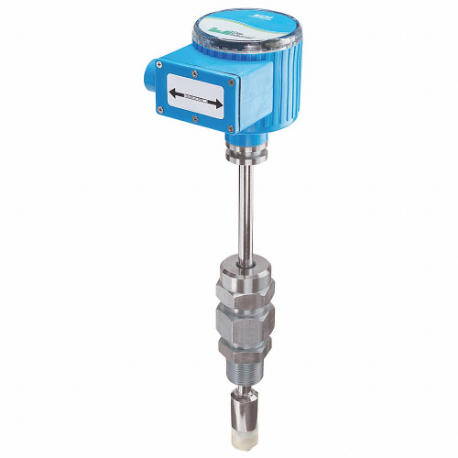

| Item | Electronic Flowmeter |
| Compatible Flow Material | Water |
| Connection Size | 10" |
| Connection Type | Insertion |
| Display Type | Not Applicable |
| Fitting Type | Insertion |
| Flow Range | 5.5-4896 GPM |
| Flow Rate - Maximum | 20 GPM |
| Flow Rate - Minimum | 1 GPM |
| Flow Rate Range | 5.5-4896 GPM |
| Flowmeter Type | Paddlewheel |
| Fluid Temp. | +14°F to +150°F |
| For Pipe Size | 1 1/2" to 10" |
| Frequency - Maximum | 800 Hz |
| Frequency - Minimum | Not Applicable |
| Housing Material | Stainless Steel |
| Includes Flow Rate Adjustment Knob | No |
| Includes Pressure Gauge | No |
| Max. Operating Pressure | 1000 psi |
| Mounting Orientation | Horizontal |
| O-ring Material | Viton |
| Output Type | Standard Frequency Pulse |
| Pulse Rate | Not Applicable |
| Rotor Material | Stainless Steel |
| Sensor Type | Paddle Wheel |
| Shaft Material | Tungsten Carbide |
| Type | Impeller |
| Unit Of Measure | Gallons |
| Viscosity - Maximum | 32.6 SUS |
| Wetted Material | Stainless Steel, Brass, Peek, PPS |
| Wetted Material Grade | Grade 316 |
| Accuracy | +/-1% |
| Flow Rate | 1-20 GPM |
| Fluid Connection | 10" Insertion |
| Includes Totalizer | Yes |
| Max. Flow Rate | 20 GPM |
| Max. Frequency | 800 Hz |
| Max. Media Temperature | 150°F |
| Max. Viscosity | 32.6 SUS |
| Max. Voltage | 35V DC |
| Media Temp. Range | 14°F to 150°F |
| Min. Flow Rate | 1 GPM |
| Min. Media Temperature | 14°F |
| Mounting Location | Insertion |
| Product Type | Flow Sensor |
| Seal Material | Viton |
| Standards | NSF 61/372 |
| Ship weight (kg) | 3.51 |
