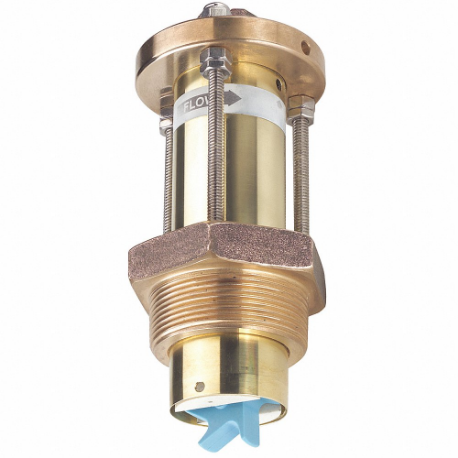

| Item | Electronic Flowmeter |
| Connection Type | Insertion |
| Fluid Temp. | 0°F to +221°F |
| For Pipe Size | 3" |
| Housing Material | Brass |
| Sensor Type | Paddle Wheel |
| Type | Impeller |
| Wetted Material | Brass, EPDM, Nylon, Tungsten, Uhmwpe |
| Accuracy | +/-1% |
| Cable Length | 20 ft. |
| Compatible Flow Material | Water |
| Connection Size | 1/2" |
| Flow Rate | 0.3-30 GPM |
| Flowmeter Type | Paddlewheel |
| Fluid Connection | 1/2" Insertion |
| Frequency (minimum) | 3.2 Hz |
| Includes Flow Rate Adjustment Knob | No |
| Includes Pressure Gauge | No |
| Includes Totalizer | No |
| Max. Flow Rate | 30 GPM |
| Max. Frequency | 200 Hz |
| Max. Media Temperature | 221°F |
| Max. Operating Pressure | 400 psi |
| Max. Viscosity | 32.6 SUS |
| Max. Voltage | 35V DC |
| Media Temp. Range | 0°F to 221°F |
| Min. Flow Rate | 0.3 GPM |
| Min. Media Temperature | 0°F |
| Mounting Location | Insertion |
| Mounting Orientation | Horizontal |
| O-ring Material | EPDM |
| Output Type | Standard Frequency Pulse |
| Overall Length | 7.1" |
| Overall Width | 3" |
| Product Type | Insertion Style Flow Sensor |
| Rotor Material | Nylon |
| Seal Material | EPDM |
| Shaft Material | Tungsten Carbide |
| Standards | CE CERTIFIED |
| Unit Of Measure | Gallons |
| Ship weight (kg) | 2.1 |
