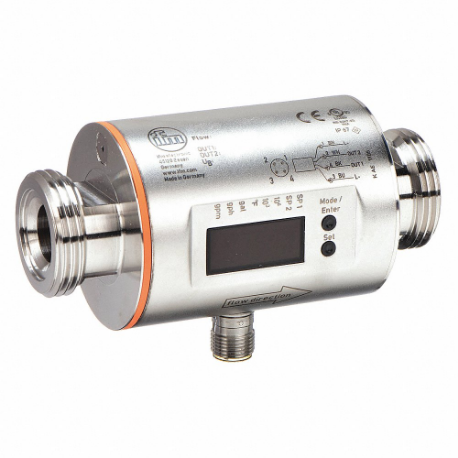

| Item | Electronic Flowmeter |
| Compatible Flow Material | Conductive Liquids, Water, Water-Like Liquids |
| Connection Size | 1/2" |
| Connection Type | BSPP |
| Display Type | LED |
| Display Units | Gallons, GPH, GPM, Temp. |
| Flow Material | Conductive Media |
| Flow Range | 0.03-6.604 GPM |
| Flow Rate - Maximum | 6.6 GPM |
| Flow Rate - Minimum | 0.03 GPM |
| Flow Rate Range | 0.03-6.604 GPM |
| Flowmeter Type | Electromagnetic |
| Fluid Temp. | -4°F to +176°F |
| For Pipe Size | 1/2" |
| Frequency - Maximum | Not Applicable |
| Frequency - Minimum | Not Applicable |
| Housing Material | Stainless Steel |
| Housing Material Grade | Grade 316L |
| Includes Flow Rate Adjustment Knob | No |
| Includes Pressure Gauge | No |
| Length | 4" |
| Max. Operating Pressure | 232 psi |
| Max. Pressure | 232 psi |
| Max. Viscosity | 370 SUS |
| Mounting Orientation | Universal |
| O-ring Material | Viton |
| Output Type | Programmable |
| Overall Length | 4" |
| Overall Width | 110 mm |
| Sensor Type | Magnetic |
| Shaft Material | Stainless Steel |
| Unit Of Measure | Gallons |
| Viscosity - Maximum | 70 SUS |
| Wetted Material | Stainless Steel, PPS, Peek |
| Wetted Material Grade | Grade 316L |
| Accuracy | +/- (0.8 mW + 0.5 MEW) |
| Flow Rate | 0.03-6.6 GPM |
| Includes Totalizer | Yes |
| Inlet/outlet Connection | 1/2" BSPP |
| Max. Flow Rate | 6.6 GPM |
| Max. Media Temperature | 158°F |
| Max. Voltage | 30V DC |
| Media Temp. Range | 14°F to 158°F |
| Min. Flow Rate | 0.03 GPM |
| Min. Media Temperature | 14°F |
| Mounting Location | Insertion |
| Product Type | Electronic Flowmeter |
| Pulse Rate | 100 pulses/gal. |
| Seal Material | Stainless Steel |
| Standards | CE CERTIFIED, CRN REGISTERED, CULUS LISTED, EC 1935/2004, IO-LINK, UKCA |
| Ship weight (kg) | 0.5 |
