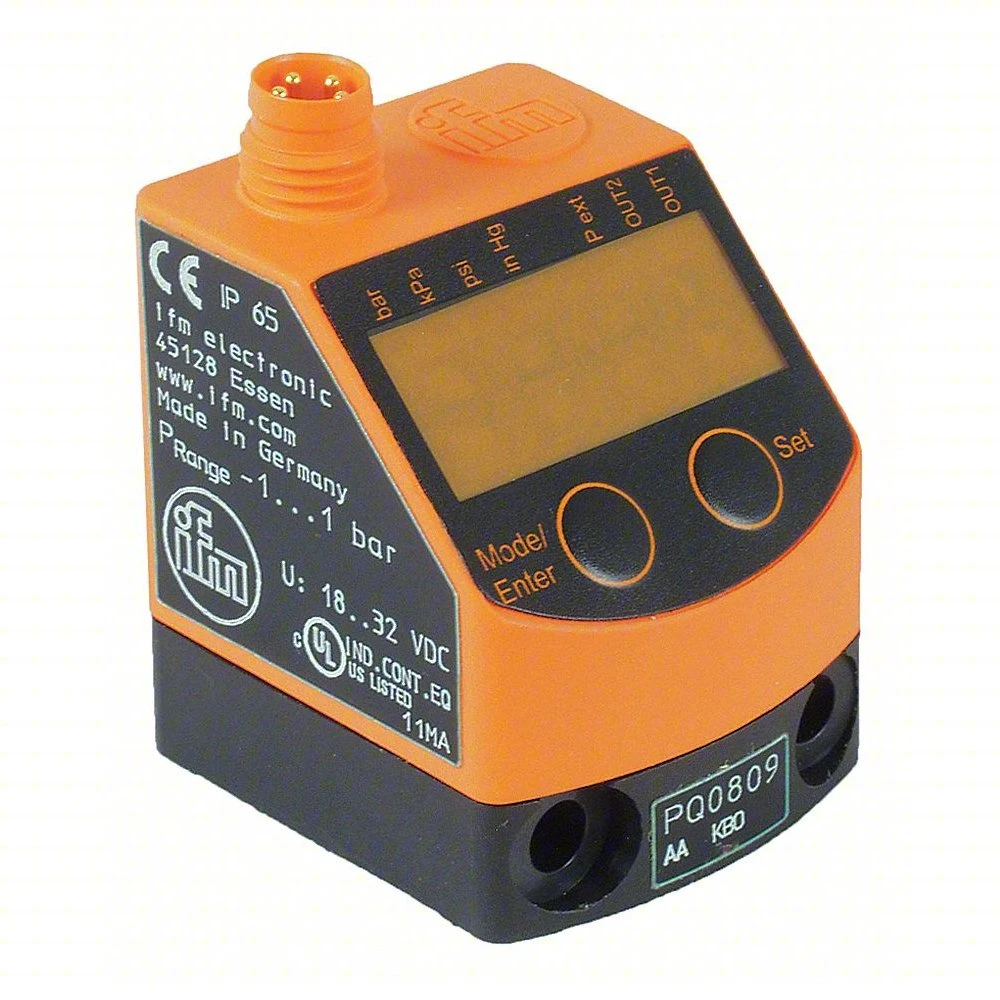

| Item | Pressure Switch |
| Body Material | Polyester, PBT |
| Burst Pressure | 435 psi |
| Circuit Type | NPN |
| Contact Form | (2) SPST |
| Electrical Connection | 4 Pin M8 Connector |
| For Use With | Air |
| Ip Rating | 65 |
| Off Set Point | -14.4 psi to +14.4 psi |
| Offset Point | -14.4 psi to +14.4 psi |
| On Set Point | -14.2 psi to +14.6 psi |
| Output Amps | 100 mA |
| Output Current | 100 mA |
| Process Connection Size | 1/8" |
| Range | -14.5 psi to +14.5 psi |
| Temp. Range | +13°F to +176°F |
| Wetted Materials | Brass |
| Compatible Media | Compressed Air |
| Digital Output Type | NPN |
| Electrical Connection Type | 4 Pin M8 Connector |
| Housing Material | FKM, PBT, Polyester |
| Manufacturer Warranty Length | 5 yrs. |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | 32°F |
| Output Current Rating | 0.1A |
| Overall Depth | 1.26" |
| Overall Height | 1.65" |
| Overall Width | 1.18" |
| Pressure - Maximum | 14.5 psi |
| Pressure - Minimum | -14.5 psi |
| Pressure Connection Type | G1/8 BSP |
| Product Type | Digital Pressure Sensor |
| Reset Point - Maximum | 14.36 psi |
| Reset Point - Minimum | -14.36 psi |
| Series | PQ Series |
| Set Point - Maximum | 14.5 psi |
| Set Point - Minimum | -14.21 psi |
| Voltage Rating - Maximum | 32V DC |
| Ship weight (kg) | 0.1 |
