Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

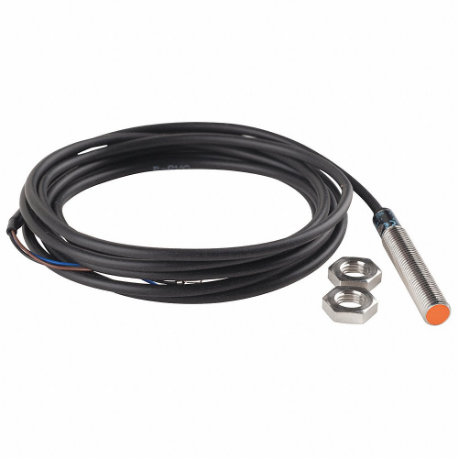

| Item | Cylindrical Proximity Sensor |
| Basic Proximity Sensor Case Material | Metal |
| Cable Length | 2m |
| Case Material | Brass White Bronze Coated |
| Housing | Threaded Type |
| Includes | (2) Lock Nuts |
| Length | 50 mm |
| Max. Detecting Distance | 1 mm |
| Max. Load Current | 200 mA |
| Mounting | Flush Mountable |
| Operating Temp. Range | -13°F to +158°F |
| Output Mode | No |
| Overload Protection | Yes |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Dia. | 8 mm |
| Proximity Sensor Electrical Connection | Cable |
| Proximity Sensor Operating Frequency | 750 Hz |
| Proximity Sensor Output Circuit Type | Three Wire PNP |
| Reverse Polarity Protection | Yes |
| Shielded / Unshielded | Shielded |
| Short-circuit Protection | Yes |
| Ac Supply Voltage Rating | Not Rated |
| Body Finish | Bronze Coated |
| Body Material | Brass |
| Dc Supply Voltage Rating | 10-36V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Nominal Sensor Diameter | M8 Threaded |
| Number Of Wires | 3 |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | NO |
| Output Circuit Current - Maximum | 200 mA |
| Output Circuit Type | PNP |
| Output Circuit Voltage - Maximum | 2.5V DC |
| Overall Height | 50 mm |
| Sensing Distance - Maximum | 1 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Diameter | 8 mm |
| Standards | EN 55011, EN 61000-4-2 ESD, EN 61000-4-3 HF RADIATED, EN 61000-4-4 BURST, EN 61000-4-6 HF CONDUCTED |
| Supply Voltage | 10-36V DC |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
IIS229 | Cylindrical Proximity Sensor | €84.94 | |
 |
IIS244 | Cylindrical Proximity Sensor | €100.69 | |
 |
IIS228 | Cylindrical Proximity Sensor | €86.60 | |
 |
IIS248 | Cylindrical Proximity Sensor | €98.99 | |
|
IIS235 | Cylindrical Proximity Sensor | €90.06 | |
|
IIS237 | Cylindrical Proximity Sensor | €90.52 | |
 |
IIS249 | Cylindrical Proximity Sensor | €100.82 |
