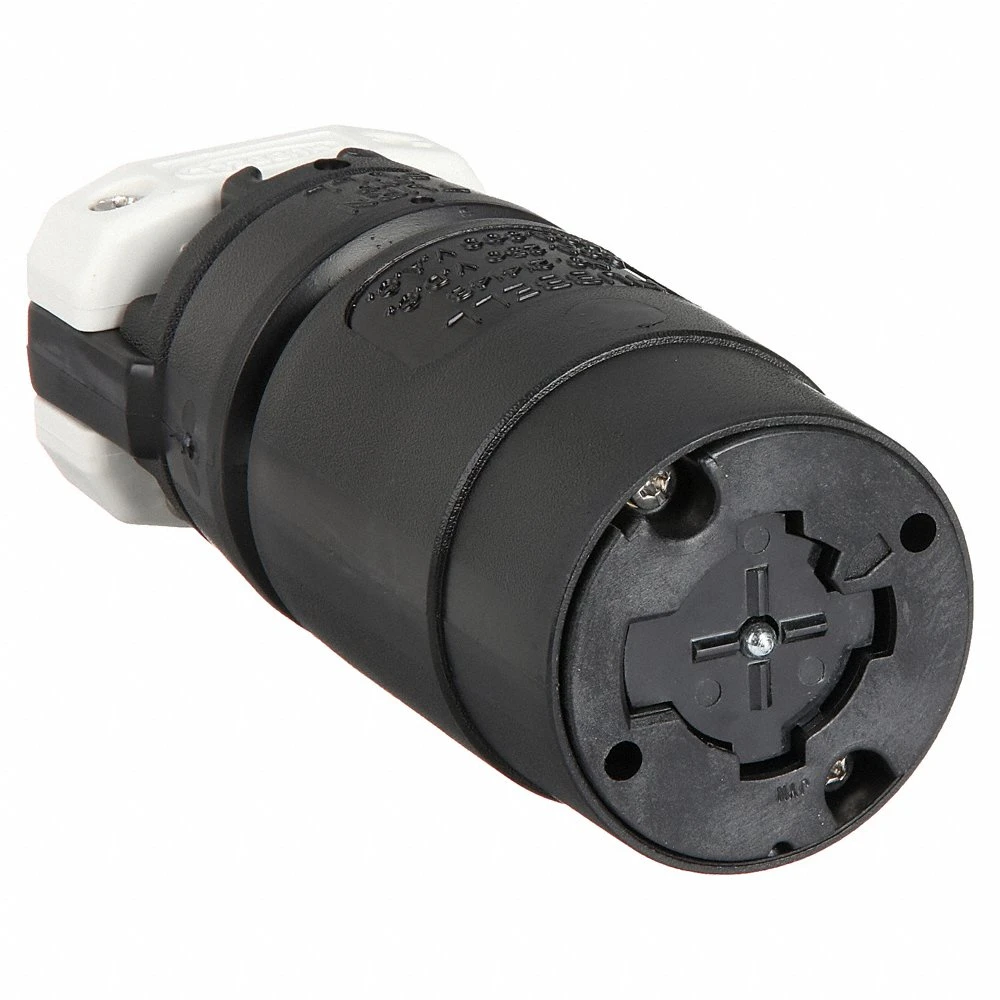

| Item | Locking Connector |
| Amps | 20 @ 250V/30 @ 600V |
| Antimicrobial | No |
| Color | Black |
| Cord Size | 0.63" to 1.2" |
| Grade | Grade Industrial |
| Material | Nylon |
| Nema Configuration | Non-NEMA |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 3 |
| Type | Non Shrouded |
| Wiring Type | Standard |
| Cap Type | No Cap Or Cover |
| Connection Orientation | Straight |
| Contact Material | Bronze |
| Current Rating | 20/30A |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 1.2" |
| For Minimum Cable Diameter | 0.7" |
| Grounding | Grounded |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Ip Rating | IP30 |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 6 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 10 AWG |
| Nema Receptacle Configuration | Non-NEMA |
| Outside Diameter | 2.438" |
| Overall Length | 6" |
| Power Indicating Light | No |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Standards | CSA CERTIFIED C22.2 NO. 42, UL 498 |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 250V DC/600V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 6.2 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 6.2 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Amps | Color | Cord Size | Ip Rating | Material | Number Of Poles | Number Of Wires | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL20444B | 30 | Red | 0.63 to 1.2" | 20 | Nylon | 3 | 4 | 3 | €391.04 | |
 |
HBL23002GB | 10 | Gray | 0.3 to 0.65" | 30 | Nylon | 2 | 3 | 1 | €310.13 | |
 |
HBL26418 | 60 | Yellow | 0.875 to 1.48" | 30 | Steel Cover/Polycarbonate Cover | 3 | 4 | 3 | €920.04 | |
 |
HBL26516 | 60 | Blue | 0.875 to 1.48" | 30 | Steel Cover/Polycarbonate Cover | 4 | 5 | 3 | €1,278.22 |
