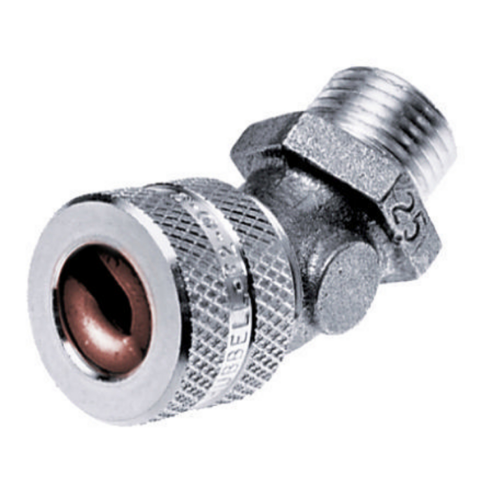

HUBBELL WIRING DEVICE-KELLEMS VHC1036 Cord Connector .5-.625 Inch Length 2.5 In
Get it by Monday, Jun 16
€61.90 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Cord Connector |
| Color | Brown |
| Conduit Size | 3/4" |
| Cord Dia. Range | 0.5" to 0.63" |
| Length | 2 1/2" |
| Liquid Tight / Dust Tight | Liquid Tight |
| Male/female | Male |
| Material | Aluminum |
| Type | 45° , Strain Relief |
| Body Color | Silver |
| Body Material | Aluminum |
| Box Connection | 3/4" MNPT |
| Collar Material | Aluminum |
| Compatible Conduit Trade Size | 3/4" |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Connection Orientation | 45° |
| Environmental Rating | Hazardous Locations |
| For Maximum Cable Od | 0.63" |
| For Minimum Cable Od | 0.5" |
| For Use With | Kellems Wire Management |
| Form Size | F3 |
| Grommet Color Code | Brown |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Hub Size | 3/4" |
| Insulated | No |
| Ip Rating | IP66 |
| Length - Box To End Of Connector | 2 5/16" |
| Liquid-tight | Yes |
| Material - External Strain Relief | No External Strain Relief |
| Maximum Operating Temperature | 225°F |
| Minimum Operating Temperature | -30°F |
| Nema Rating | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Cords | 1 |
| Standards | CSA LR27378, TITLE 46-PART 111, UL E54218(M), UNITED STATES COAST GUARD APPROVAL |
| Strain Relief Type | No External Strain Relief |
| Thread Gender | Male |
| Thread Type | NPT |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 5.08 |
| HS code | 7609000000 |
| Country of Origin | US |
