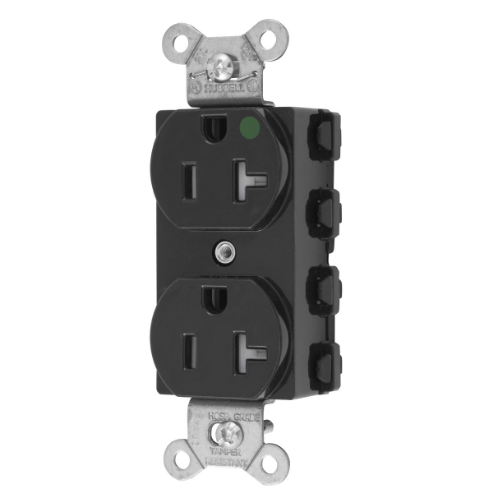

| Item | Receptacle |
| Amps | 20A |
| Amps Rating | 20A |
| Color | Black |
| Connectivity | Connectorized |
| Material | Nylon |
| Max. Hp | 1 hp |
| Nema Rating | 5-20R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Overall Height | 1.1" |
| Overall Length | 3 7/25" |
| Overall Width | 1 16/25" |
| Phase | 1 |
| Voltage | 125V AC |
| Wattage | 2500 W |
| Wire Size | 12 AWG |
| Afci | No |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 20A |
| Face Plate Height | 2.6" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec. |
| Grounding | Grounded |
| Housing Color | Black |
| Includes | Wall Plate or Weatherproof Cover |
| Ip Rating | IP20 |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Special Resistance Properties | Tamper Resistant |
| Standards | CSA CERTIFIED C22.2 NO. 42 FILE 285, FEDERAL SPECIFICATION W-C-596, NEMA WD-6, UL 498 FILE E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Modular Wiring |
| Wire Connection Types | Snap In Module |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.17 |
| Country of Origin | US |
