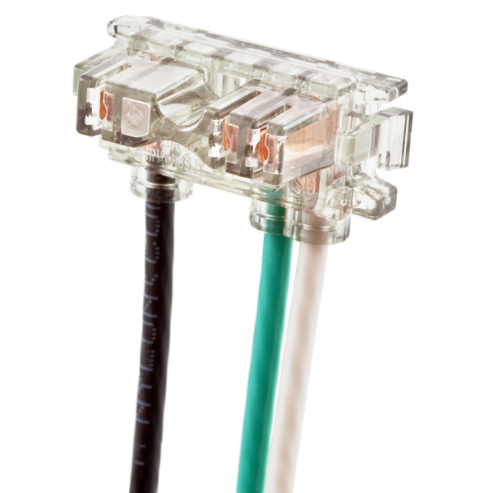

HUBBELL WIRING DEVICE-KELLEMS SNAP1RNA Straight Blade Receptacle, 2-P 3-W Grounding, 20A 125V
Get it by Monday, Jun 16
€6.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Receptacle Wiring Module |
| Amps | 15-20A , 15/20A |
| Color | Clear |
| Conductor Range | Pre-Wired #12 THHN |
| Connectivity | Connectorized |
| Dielectric Strength | 2000V |
| Height | 0.79" |
| Insulation | Insulated Body |
| Lead Length | 6" |
| Length | 1 12/25" |
| Material | Polycarbonate |
| Nema Rating | Non-NEMA |
| Number Of Conductors | 3 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +75°C |
| Phase | Single Phase |
| Voltage | 125V AC |
| Width | 0.78" |
| Wire Size | 12 AWG |
| Wire Type | Solid |
| Application | Straight Blade Devices |
| Conductor Type | THHN |
| Connector Type | Pigtail |
| Current Rating | 20A |
| For Location | Indoor |
| For Use With | SNAPconnect II Receptacles |
| Housing Color | Clear |
| Housing Material | Polycarbonate |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Module Type | Receptacle |
| Standards | CSA CERTIFIED C22.2 NO. 42 FILE 285, FEDERAL SPECIFICATION W-C-596, NEMA WD-6, UL 498 FILE E2186 |
| Voltage Rating | 120/125V AC |
| Wire Connection Types | Snap In Module |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.01 |
| Ship length (cm) | 3.76 |
| Ship width (cm) | 1.98 |
| HS code | 8544429000 |
| Country of Origin | MX |
| Product | Model | Height | Item | Length | Number Of Poles | Number Of Wires | Voltage | Width | Wire Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SNAP1RA | 0.79" | Receptacle Wiring Module | 1.48" | 2-Pole | 3-Wire | 125 VAC | 0.78" | Solid | - | RFQ
|
|
SNAP2RA | 0.63" | Receptacle Wiring Module | 1.48" | 2-Pole | 3-Wire | 125 VAC | 0.78" | Stranded | €3.49 | |
 |
SNAP3W1NA | 0.84" | Switch Wiring Module | 6.5" | 2 | 3 | 125 VAC | 1.39" | Solid | €6.51 | |
|
SNAP3W2NA | 0.84" | Switch Wiring Module | 6.5" | 2 | 3 | 125 VAC | 1.39" | Stranded | €6.51 | |
 |
SNAPSP1NA | 0.84" | Switch Wiring Module | 6.5" | 2 | 3 | 120 to 277 VAC | 1.39" | Solid | €6.51 | |
|
SNAPSP2NA | 0.84" | Switch Wiring Module | 6.5" | 2 | 3 | 120 to 277 VAC | 1.39" | Stranded | €6.51 | |
|
SNAP2RNA | 0.63" | Receptacle Wiring Module | 1.48" | 2-Pole | 3-Wire | 125 VAC | 0.78" | Stranded | €5.04 |
