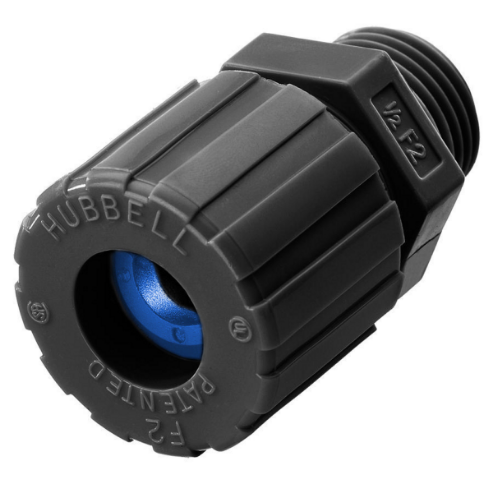

HUBBELL WIRING DEVICE-KELLEMS SHC2023CR Cord Connector Npt 0.38-0.50 Inch Black
Get it by Wednesday, Jun 18
€17.61 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Cable Connector |
| Color | Black |
| Conduit Size | 1/2" |
| Cord Dia. Range | 0.38" to 0.5" |
| Length | 2.03" |
| Liquid Tight / Dust Tight | Liquid Tight |
| Male/female | Male |
| Material | Nylon |
| Min. Throat Dia. | 0.38" |
| Type | NPT , Straight Male |
| Body Color | Black |
| Body Material | Nylon |
| Box Connection | 1/2" MNPT |
| Bushing Material | Neoprene |
| Collar Material | Nylon |
| Compatible Conduit Trade Size | 1/2" |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Connection Orientation | Straight |
| Environmental Rating | Hazardous Locations, Not Flammable |
| For Maximum Cable Od | 1/2" |
| For Minimum Cable Od | 0.38" |
| For Use With | Kellems Wire Management |
| Form Size | F2 |
| Grommet Color Code | Blue |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Hub Size | 1/2" |
| Insulated | Yes |
| Ip Rating | IP66 |
| Length - Box To End Of Connector | 1 1/2" |
| Liquid-tight | Yes |
| Material - External Strain Relief | No External Strain Relief |
| Maximum Operating Temperature | 225°F |
| Minimum Operating Temperature | -30°F |
| Nema Rating | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Cords | 1 |
| Overall Length | 2" |
| Resistance Properties | Corrosion Resistant |
| Standards | CSA CERTIFIED, TITLE 46-PART 111, UL 514B, UNITED STATES COAST GUARD APPROVAL |
| Strain Relief Type | No External Strain Relief |
| Thread Gender | Male |
| Thread Type | NPT |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 11.94 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 15.24 |
| HS code | 3917400090 |
| Country of Origin | US |
| Product | Model | Color | Conduit Size | Connector Type | Item | Length | Male/female | Material | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SEC100BA | Black | 1" | Straight and Low Profile | Cable Connector | 2.41" | Female | Nylon | NPT | €11.11 | |
 |
SEC100GA | Gray | 1" | Straight and Low Profile | Cable Connector | 2.41" | Female | Nylon | NPT | €11.11 | |
 |
SEC38BA | Black | 3/8" | Straight and Low Profile | Cable Connector | 1.41" | Female | Nylon | NPT | €3.41 | |
 |
SEC38GA | Gray | 3/8" | Straight and Low Profile | Cable Connector | 1.41" | Female | Nylon | NPT | €3.41 | |
 |
SEC50BA | Black | 1/2" | Straight and Low Profile | Cable Connector | 1.7" | Female | Nylon | NPT | €3.17 | |
 |
SEC50GA | Gray | 1/2" | Straight and Low Profile | Cable Connector | 1.7" | Female | Nylon | NPT | €4.26 | |
 |
SEC75BA | Black | 3/4" | Straight and Low Profile | Cable Connector | 2" | Female | Nylon | NPT | €5.16 |
