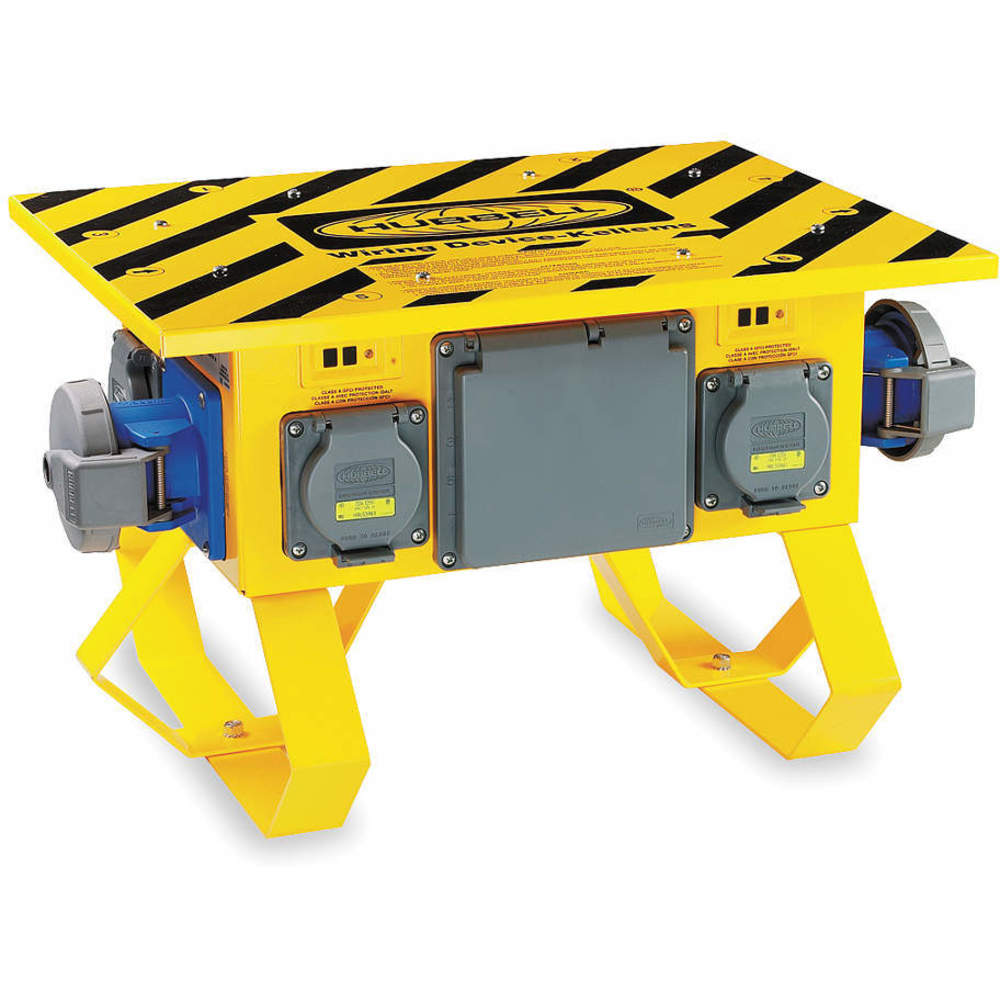

HUBBELL WIRING DEVICE-KELLEMS SCSB0 Power Distribution Box, 60 A, 120 - 208 VAC, 4 Pole, Yellow
Get it by Tuesday, Jun 17
€3,532.18 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Power Distribution Box |
| Amps | 60A |
| Color | Yellow |
| Inlet | Pin And Sleeve 60A @120/208Y V AC |
| Material | Thermoplastic |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| Phase | 3 |
| Wattage | 12480 W |
| Base Type | Legs |
| Feed Through Receptacle | Non NEMA 50A 125/250V |
| For Environment | Indoor, Outdoor |
| Housing Color | Yellow |
| Housing Material | Plastic |
| Housing Material Finish | Painted |
| Includes Gfci | Manual Reset GFCI |
| Inlet Current Rating | 60A |
| Inlet Receptacle | Pin and Sleeve 60A @120/208V AC |
| Inlet Voltage Rating | 120/208V AC |
| Nema Enclosure Rating | 3R |
| Number Of Outlets | 7 |
| Outlets Included | (6) 5-20R, 60A Non-NEMA In/Out |
| Overall Height | 15 3/16" |
| Overall Length | 30 13/16" |
| Overall Width | 20 3/16" |
| Standards | CUL, UL LISTED |
| Ship weight (kg) | 24.14 |
| Ship height (cm) | 34.8 |
| Ship length (cm) | 58.01 |
| Ship width (cm) | 48.01 |
| HS code | 8537109070 |
| Country of Origin | US |
| Product | Model | Amps | Color | Current Rating | Exposure Conditions | Inlet | Number Of Poles | Number Of Wires | Outlet | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SBTL1A | 50 | Yellow | 50 A | Indoor and Outdoor | Twist Lock 50A @ 125/250 VAC | 3 | 4 | (7) L5-20R, (1) 50A Twist Lock | €3,226.34 | |
|
SBSB1A | 50 | Yellow | 50 A | Indoor and Outdoor | Twist Lock 50A @ 125/250 VAC | 3 | 4 | (7) 5-20R, (1) 50A Twist Lock | €3,226.34 | |
 |
SCSB0M2 | 60 | Green | 60 A | Indoor and Outdoor | Pin and Sleeve 60A @120/208Y VAC | 4 | 5 | (6) 5-20R GFCI, (1) 60A Class L | €6,169.82 | |
 |
TPDL | - | Yellow | 50 A | Indoor/Outdoor | - | 2 | 3 | - | €1,772.57 | |
|
TPDS | 50 | Yellow | 50 A | Indoor/Outdoor | L6-30R | 2 | 3 | (6) 5-20R, (1) L6-30 | €1,772.57 |
