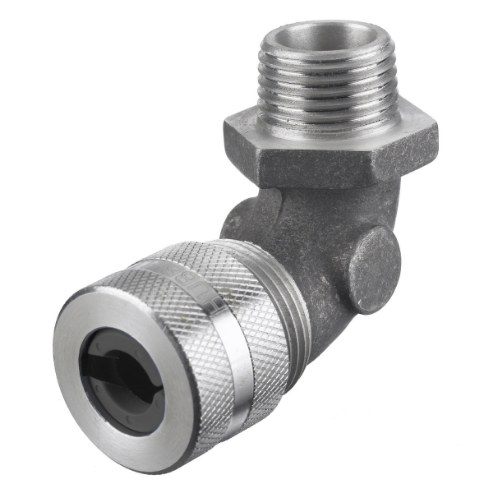

HUBBELL WIRING DEVICE-KELLEMS NHC1043 Liquid Tight Connector 1 Inch 90 Degree Gray
Get it by Tuesday, Jun 17
€53.50 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Liquid Tight Connector |
| Color | Gray |
| Conduit Size | 1" |
| Connector Type | Right Angle |
| Length | 3.187" |
| Material | Aluminum |
| Body Color | Silver |
| Body Material | Aluminum |
| Box Connection | 1" MNPT |
| Collar Material | Aluminum |
| Compatible Conduit Trade Size | 1" |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Connection Orientation | 90° |
| Cord Dia. Range | 0.88" to 1" |
| Environmental Rating | Hazardous Locations |
| For Maximum Cable Od | 1" |
| For Minimum Cable Od | 0.88" |
| For Use With | Kellems Wire Management |
| Form Size | F4 |
| Grommet Color Code | Gray |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Hub Size | 1" |
| Insulated | No |
| Ip Rating | IP66 |
| Length - Box To End Of Connector | 2 1/16" |
| Liquid-tight | Yes |
| Material - External Strain Relief | No External Strain Relief |
| Maximum Operating Temperature | 225°F |
| Minimum Operating Temperature | -30°F |
| Nema Rating | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Cords | 1 |
| Standards | CSA LR27378, UL E54218(M) |
| Strain Relief Type | No External Strain Relief |
| Thread Gender | Male |
| Thread Type | NPT |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 8.89 |
| HS code | 7609000000 |
| Country of Origin | CN |
