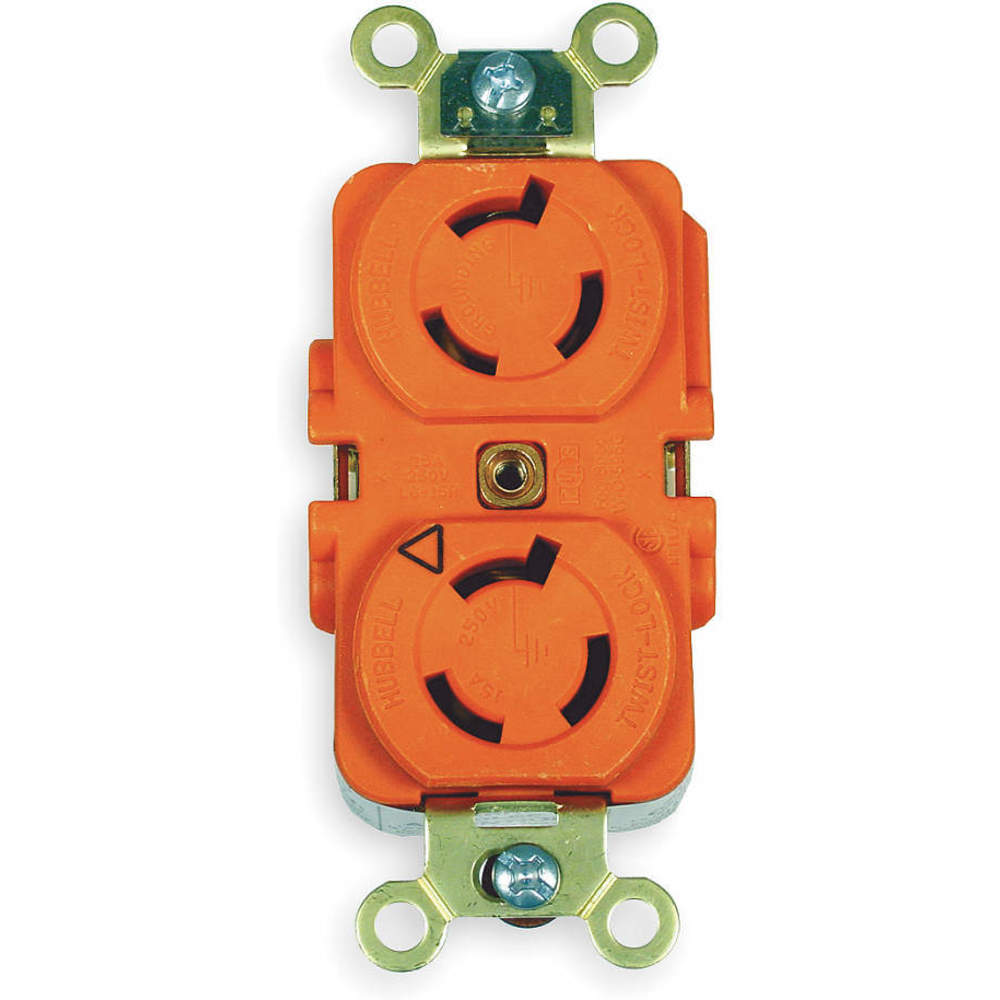

| Item | Receptacle w/Isolated Ground |
| Amps | 15A |
| Color | Orange |
| Connectivity | Back And Side Wired |
| Grade | Grade Industrial |
| Height | 1.17" |
| Hp | 1 1/2 hp |
| Length | 3.29" |
| Material | Thermoplastic |
| Max. Hp | 1 1/2 hp |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Rating | NEMA L6-15R |
| Number Of Poles | 2 |
| Phase | 1 |
| Type | Non Shrouded |
| Voltage | 250V |
| Wattage | 3750 W |
| Width | 1.7" |
| Wire Size | 18 AWG to 10 AWG |
| Wire Type | Standard |
| Afci | No |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Flange Type | Non Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grounding | Grounded |
| Horsepower Rating | 1 1/2 hp |
| Housing Color | Orange |
| Housing Material | Thermoplastic |
| Includes | Mounting Strap |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Market | Industrial |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 18 AWG |
| Mount Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Receptacle Configuration | L6-15R |
| Number Of Gangs | 1 |
| Number Of Wires | 3 |
| Polarized | Yes |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Standards | UL 498 |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.97 |
| Ship length (cm) | 8.36 |
| Ship width (cm) | 4.32 |
| HS code | 8536698000 |
| Country of Origin | US |
