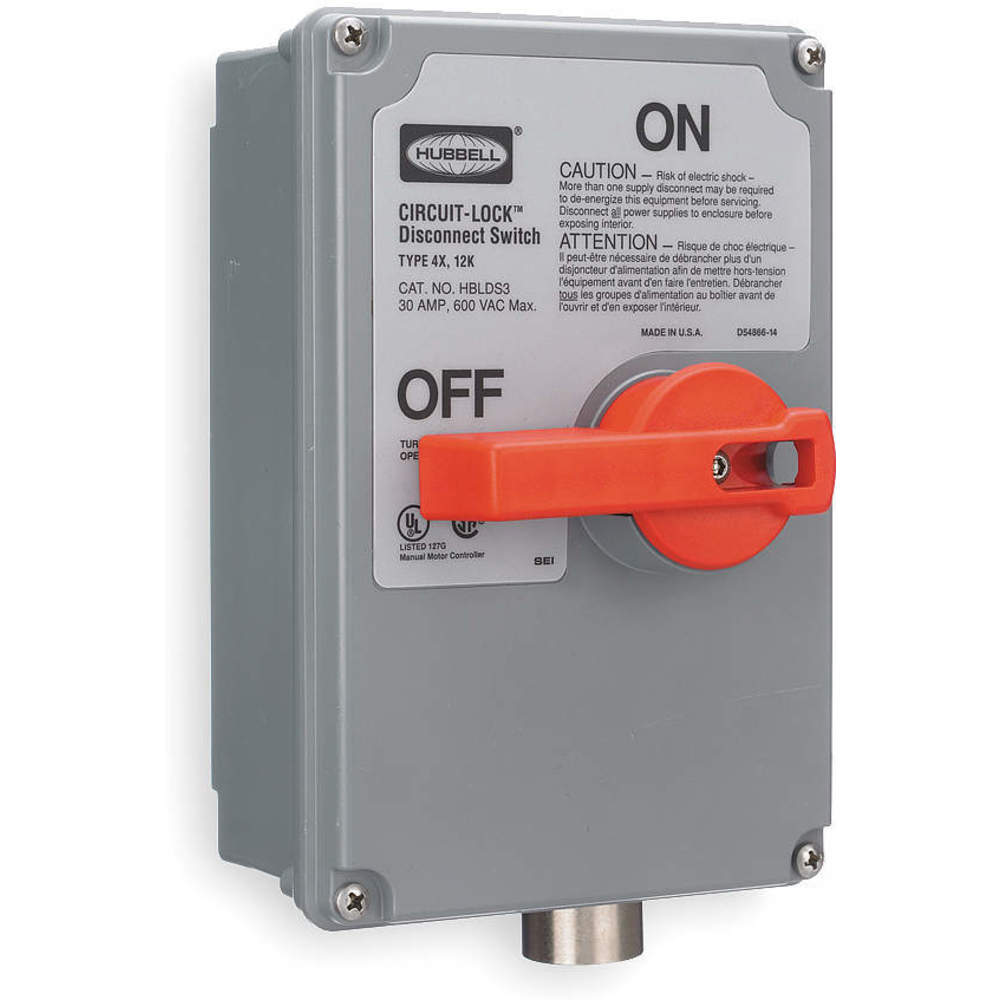

HUBBELL WIRING DEVICE-KELLEMS HBLDS3MQR Enclosed Disconnect Switch, With Receptacle, 3 Pole, 600 VAC, 30 A
Get it by Tuesday, Jun 17
€1,088.38 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Enclosed Disconnect Switch |
| Amps | 30A |
| Dimension | 8.5" x 6" x 4.12" |
| Exposure Conditions | Indoor And Outdoor |
| Height | 4 3/25" |
| Length | 8 1/2" |
| Max. Hp | 15 hp |
| Max. Voltage | 600V AC |
| Min. Number Of Cycles | 10000 |
| Mounting Style | Screw |
| Operating Temp. | -75°C to -40°C |
| Phase | 3 |
| Plug End | Female |
| Switch Type | 3 Pole |
| Type | With Female Receptacle |
| Wattage | 18000 W |
| Width | 6" |
| Wire Size | 14 AWG to 10 AWG |
| Component Type | Quick-Disconnect Switch |
| Contact Material | Tin-Plated Brass |
| Current Rating | 30A |
| For Location | Indoor/Outdoor |
| For Use With | 2DZU9, 2DZV1, 2DZV2, 2XE21, 2XE22 |
| Gender Configuration | Female |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Nema Enclosure Rating | 4X |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Standards | INDUSTRIAL CONTROL EQUIPMENT FILE #E36355, LISTED TO UL 2238 AND UL 50E, UL 508 |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 600V AC |
| Ship weight (kg) | 1.33 |
| Ship height (cm) | 10.46 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 15.24 |
| HS code | 8538908080 |
| Country of Origin | PL |
| Product | Model | Enclosure Type | Exposure Conditions | Height | Item | Length | Max. Hp | Operating Temp. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL1389MQR | NEMA 1 | Indoor Dry | 3.4" | Switched Enclosure | 4.52" | 20 | 60 to -40 Degree C | With Female Receptacle | €576.20 | |
 |
HBL1389MQ5 | NEMA 1 | Indoor Dry | 3.4" | Switched Enclosure | 4.52" | 20 | 60 to -40 Degree C | With Single Ended Female Cord | €576.20 | |
 |
HBLDS3MQ5 | NEMA 4X | Indoor and Outdoor | 4.12" | Enclosed Disconnect Switch | 8.5" | 15 | -75 to -40 Degree C | With Single Ended Female Cord | €915.62 |
