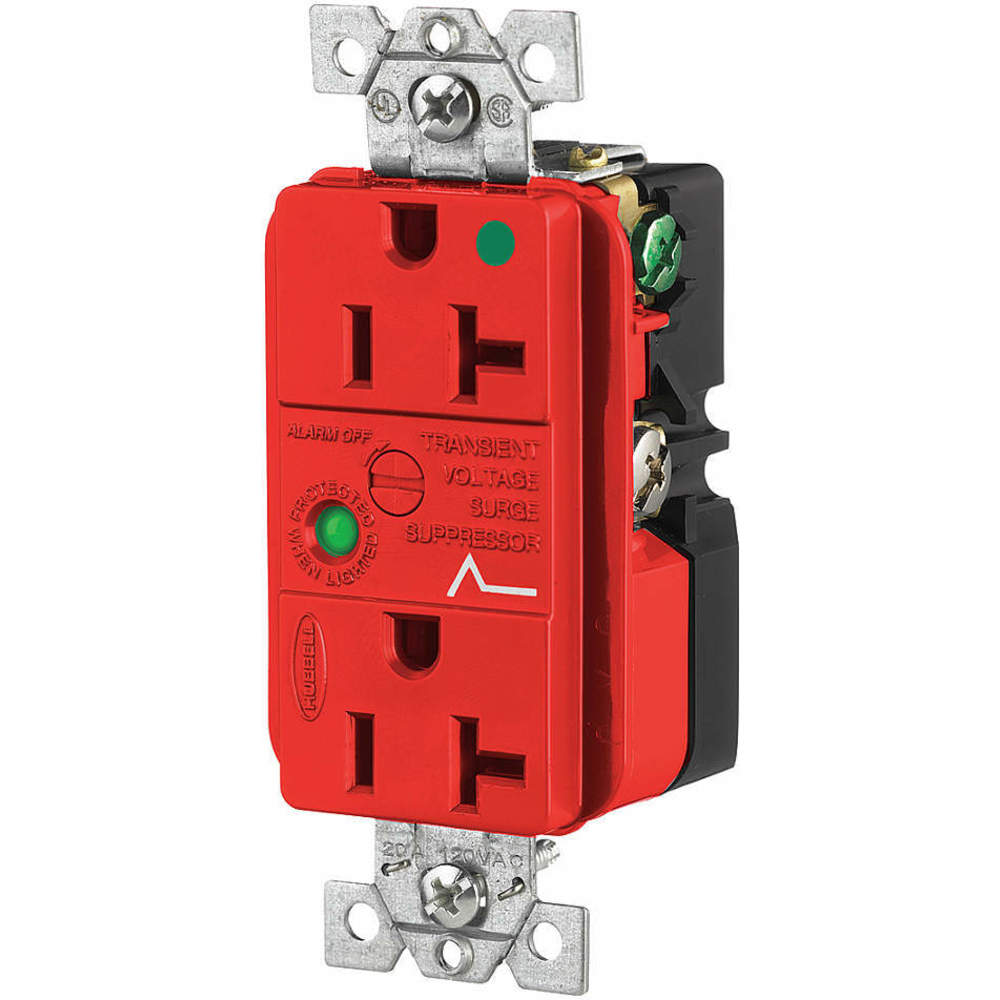

| Item | Receptacle with Surge Protection |
| Amps | 20A |
| Application Environment | Hospital Grade |
| Color | Red |
| Connectivity | Terminal Screws |
| Duty | Heavy Duty |
| Frequency | 60 Hz |
| Grade | Hospital |
| Indicator | Led And Audible Alarm |
| Material | Composite |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | +32°F to +140°F |
| Outlet | Straight Blade |
| Outlet Type | Decorator Duplex |
| Phase | 1 |
| Power Indicator | Yes |
| Surge Protection | Yes |
| Voltage | 125V AC |
| Weather Resistant | No |
| Wiring Method | Side |
| Afci | No |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 20A |
| Face Plate Height | 2.6" |
| Gfci | No |
| Grounding | Grounded |
| Housing Color | Red |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Special Resistance Properties | Impact Resistant |
| Standards | CSA CERTIFIED C22.2 NO. 42, UL 498, UL E2186 |
| Ul 94 Flammability Rating | V-2 |
| Visual Indicator Lights | Power Connected |
| Voltage Rating | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 10.46 |
| Ship length (cm) | 10.26 |
| Ship width (cm) | 4.75 |
| HS code | 8536308000 |
| Country of Origin | CN |
