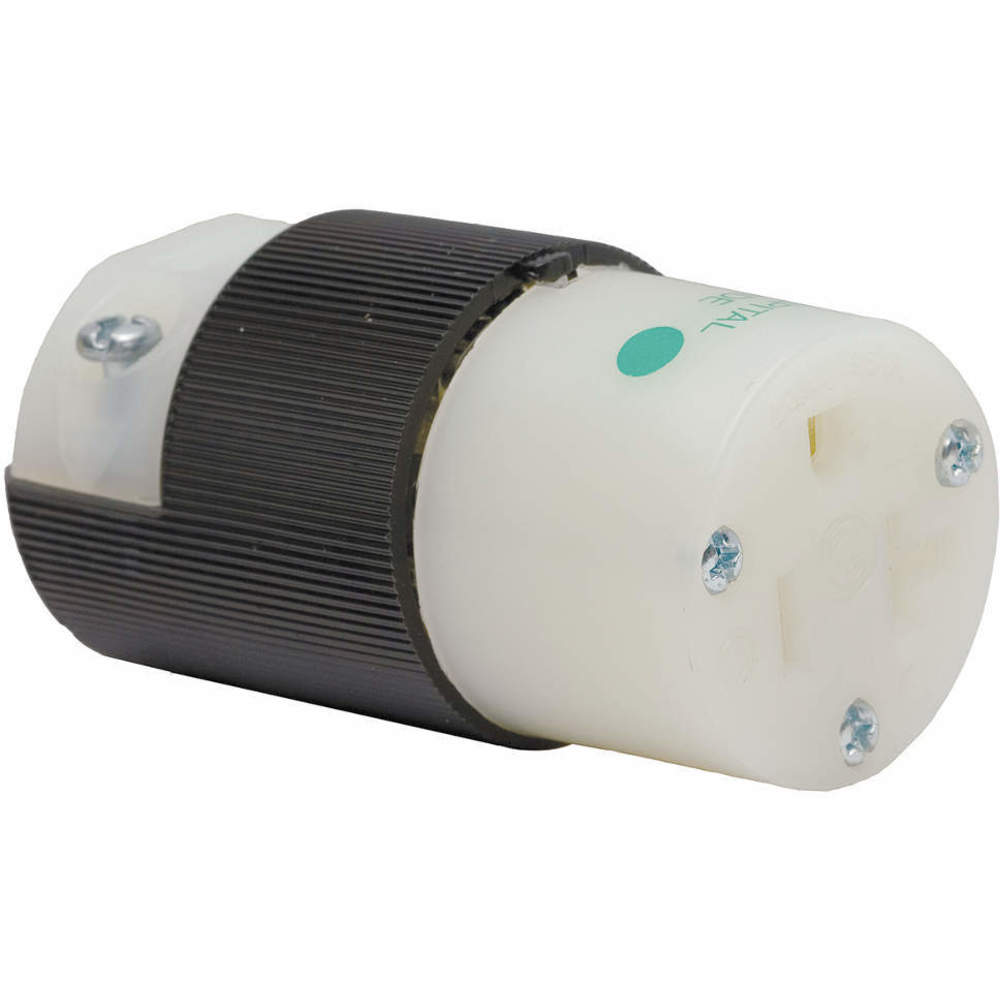

HUBBELL WIRING DEVICE-KELLEMS HBL8319C Female Connector, Straight, 20A 125V, 5-20R, Black And White, 1 Pk
Get it by Tuesday, Jun 17
€46.50 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Connector |
| Amps | 20A |
| Antimicrobial | No |
| Color | Black, White |
| Connectivity | Screw Terminals |
| Cord Size | #18 AWG to #10 AWG , 0.23" to 0.72" |
| Grade | Hospital |
| Height | 1.53" |
| Insulation | Insulated Body |
| Length | 2.78" |
| Material | Nylon |
| Max. Hp | 1 hp |
| Nema Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Voltage | 125V |
| Width | 1.53" |
| Wiring Type | Standard |
| Cap Type | No Cap Or Cover |
| Connection Orientation | Straight |
| Contact Material | Copper |
| Current Rating | 20A |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.72" |
| For Minimum Cable Diameter | 0.23" |
| Grounding | Grounded |
| Horsepower Rating | 1 hp |
| Housing Color | Black, White |
| Housing Material | Thermoplastic Elastomer |
| Ip Rating | IP20 |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Nema Receptacle Configuration | NEMA 5-20R |
| Overall Length | 2.78" |
| Polarized | Yes |
| Power Indicating Light | No |
| Resistance Properties | Dust Ignition Proof, Moisture Resistant, Weather Resistant |
| Standards | CSA CERTIFIED, NEMA WD-6, UL LISTED |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.89 |
| Ship length (cm) | 7.06 |
| Ship width (cm) | 3.89 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Amps | Color | Conductor Range | Cord Size | Current Rating | Height | Hp | Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL8319CT | 20 | Transparent | - | 0.230 to 0.720" | 20 A | 1.53" | 1 | 2.78" | €82.83 | |
 |
HBL8469V | 20 | White | #18AWG to #12AWG | 0.300 to 0.660" | 20 A | 1.13" | 2 | 2.63" | €58.47 | |
 |
HBL8219C | 15 | Black and White | - | 0.230 to 0.720" | 15 A | 1.53" | 0.5 | 2.78" | €37.73 | |
 |
HBL8119V | 15 | White | #14 AWG to #12 AWG | 0.300 to 0.660" | 15 A | 1.13" | 0.5 | 2.63" | €28.68 | |
 |
HBL8219CT | 15 | Transparent | - | 0.230 to 0.720" | 15 A | 1.53" | 0.5 | 2.78" | €69.14 |
