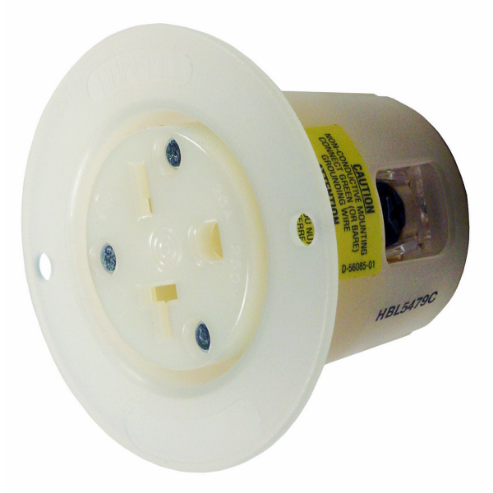

HUBBELL WIRING DEVICE-KELLEMS HBL5479C Straight Receptacle, 20A 250V, 6-20R, White, 1 Pk
Get it by Tuesday, Jun 17
€78.06 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Receptacle |
| Amps | 20A |
| Application Environment | Industrial Environments |
| Color | White |
| Connectivity | Screw Terminals |
| Duty | Heavy Duty |
| Height | 2 14/25" |
| Length | 1 18/25" |
| Material | Nylon, Polycarbonate |
| Max. Hp | 2 hp |
| Mounting Type | Panel |
| Nema Rating | NEMA 6-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Single |
| Phase | 1 |
| Power Indicator | No |
| Surge Protection | No |
| Voltage | 250V |
| Wattage | 5000 W |
| Weather Resistant | No |
| Width | 2 14/25" |
| Wire Size | 18 AWG to 10 AWG |
| Wiring Method | Back |
| Afci | No |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Flange Diameter | 2.6" |
| Flange Height | 1.7" |
| Flange Material | Nylon |
| Flange Shape | Round |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Horsepower Rating | 2 hp |
| Housing Color | White |
| Housing Material | Nylon |
| Includes | Mounting Hardware, Weatherproof Lift Cover |
| Includes Mounting Hardware | Yes |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 18 AWG |
| Mount Hole Center-to-center Width | 2.2" |
| Mount Type | Flush |
| Mounting Location | Panel |
| Nema Enclosure Rating | 1 |
| Nema Receptacle Configuration | NEMA 6-20R |
| Overall Depth | 2.6" |
| Polarized | Yes |
| Receptacle Type | Single |
| Special Resistance | Impact Resistant |
| Standards | CSA CERTIFIED C22.2 NO. 42, NEMA WD-6, UL E2186 |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 250V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 6.5 |
| Ship length (cm) | 4.37 |
| Ship width (cm) | 6.5 |
| HS code | 8536698000 |
| Country of Origin | US |
