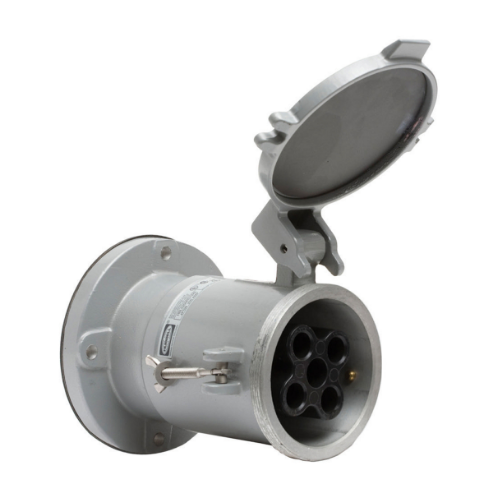

| Item | Pin and Sleeve Receptacle |
| Amps | 200A |
| Exposure Conditions | Wateright |
| Material | Thermoplastic |
| Mounting Style | Screw |
| Number Of Poles | 4.0 |
| Number Of Wires | 5 |
| Phase | 3 |
| Wattage | 120000 W |
| Wire Size | 2 AWG to 4/0 AWG |
| Cap Type | Spring Loaded Cap |
| Compatible With Series | Insulgrip |
| Connection Orientation | Straight |
| Current Rating | 200A |
| Flange Material | Thermoplastic |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Housing Color | Black, Gray |
| Housing Material | Aluminum |
| Housing Material Finish | Epoxy Painted |
| Includes Mounting Hardware | Yes |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 4/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 2 AWG |
| Nema Enclosure Rating | 4X |
| Number Of Gangs | 1 |
| Number Of Ground Connections | 5 |
| Power Indicating Light | No |
| Resistance Properties | Impact Resistant, Moisture Resistant |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | CSA CERTIFIED TO CSA SPEC. C22.2 NO. 182.1, CSA CERTIFIED TYPE 4X, UL 1682, UL LISTED |
| Switch Rated | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 600V AC/250V DC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 4.86 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 19.71 |
| Ship width (cm) | 17.78 |
| Country of Origin | US |
