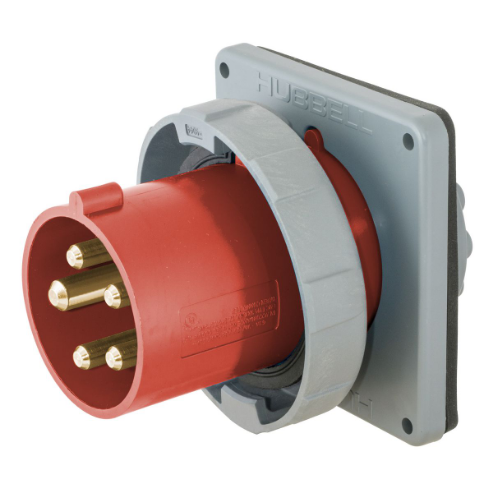

HUBBELL WIRING DEVICE-KELLEMS HBL5100B7W Iec Pin And Sleeve Inlet, Male, 100 A, 277 - 480 VAC, 4 Pole, Red
Get it by Tuesday, Jun 17
€1,529.21 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | IEC Pin and Sleeve Inlet |
| Amps | 100A |
| Color | Red |
| Exposure Conditions | Wateright |
| Hp Rating | 30 hp |
| Material | Thermoplastic |
| Mounting Style | Screw |
| Number Of Poles | 4.0 |
| Number Of Wires | 5 |
| Phase | 3 |
| Temperature Range | -40°C to +75°C |
| Type | Inlet |
| Voltage | 277/480V |
| Wattage | 48000 W |
| Wire Size | #3 AWG to #1/0 AWG |
| Compatible With Series | HBL Heavy Duty |
| Current Rating | 100A |
| Face Diameter | 3.44" |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin |
| Flange Diameter | 3.94" |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 40 hp |
| Housing Color | Red |
| Housing Material | Polybutylene Terephthalate |
| Insulation Material | Thermoplastic |
| Ip Rating | IP67 |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Standards | CSA CERTIFIED LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2 |
| Switch Rated | Yes |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 277/480V AC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 1.51 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 16.26 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Amps | Current Rating | Hp | Number Of Poles | Number Of Wires | Phase | Type | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL330B7W | 30 | 30 A | - | 2 | 3 | 1 | Inlet | 480 | €490.29 | |
|
HBL360B7W | 60 | 60 A | - | 2 | 3 | 1 | Inlet | 480 | €687.23 | |
 |
HBL4100B7W | 100 | 100 A | 50 | 3 | 4 | 3 | Inlet | 480 | €930.11 | |
|
HBL460B7W | 60 | 60 A | 10 | 3 | 4 | 3 | Inlet | 480 | €766.86 | |
 |
HBL5125B6W | 125 | 125 A | - | 4 | 5 | Multi | Inlet | 240/415 | €1,183.80 | |
|
HBL520B7W | 20 | 20 A | 5 | 4 | 5 | 3 | Inlet | 277/480 | €356.93 | |
|
HBL530B7W | 30 | 30 A | 15 | 4 | 5 | 3 | Inlet | 277/480 | €624.38 |
