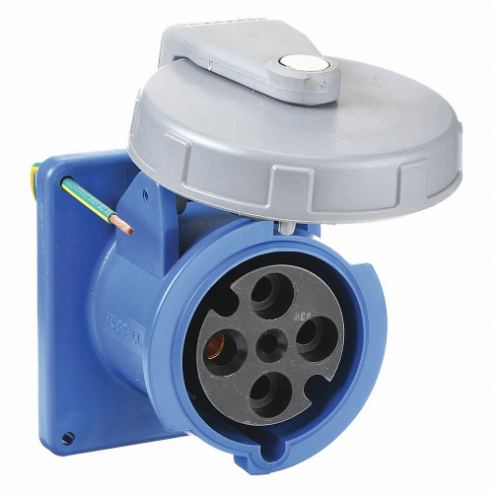

HUBBELL WIRING DEVICE-KELLEMS HBL460R9V0 Pin Sleeve Receptacle
Get it by Wednesday, Jun 18
€851.77 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Pin and Sleeve Receptacle |
| Amps | 60A |
| Color | Blue |
| Hp Rating | 5 hp |
| Number Of Poles | 3.0 |
| Number Of Wires | 4 |
| Phase | 3 |
| Cap Type | Spring Loaded Cap |
| Connection Orientation | Straight |
| Current Rating | 60A |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 5 hp |
| Housing Color | Blue |
| Housing Material | Nylon |
| Housing Material Grade | Grade Zytel 101 |
| Market | Industrial |
| Maximum Wire Size | 2 AWG |
| Minimum Wire Size | 8 AWG |
| Nema Enclosure Rating | 4X |
| Number Of Gangs | 1 |
| Power Indicating Light | No |
| Resistance Properties | Shatter and Crack Resistant |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | CSA CERTIFIED C22.2 NO. 182.1, CSA CERTIFIED LR285C, IEC 60309-1, IEC 60309-2, UL E146032 |
| Switch Rated | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 1.15 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 14.22 |
| HS code | 8536904000 |
| Country of Origin | US |
