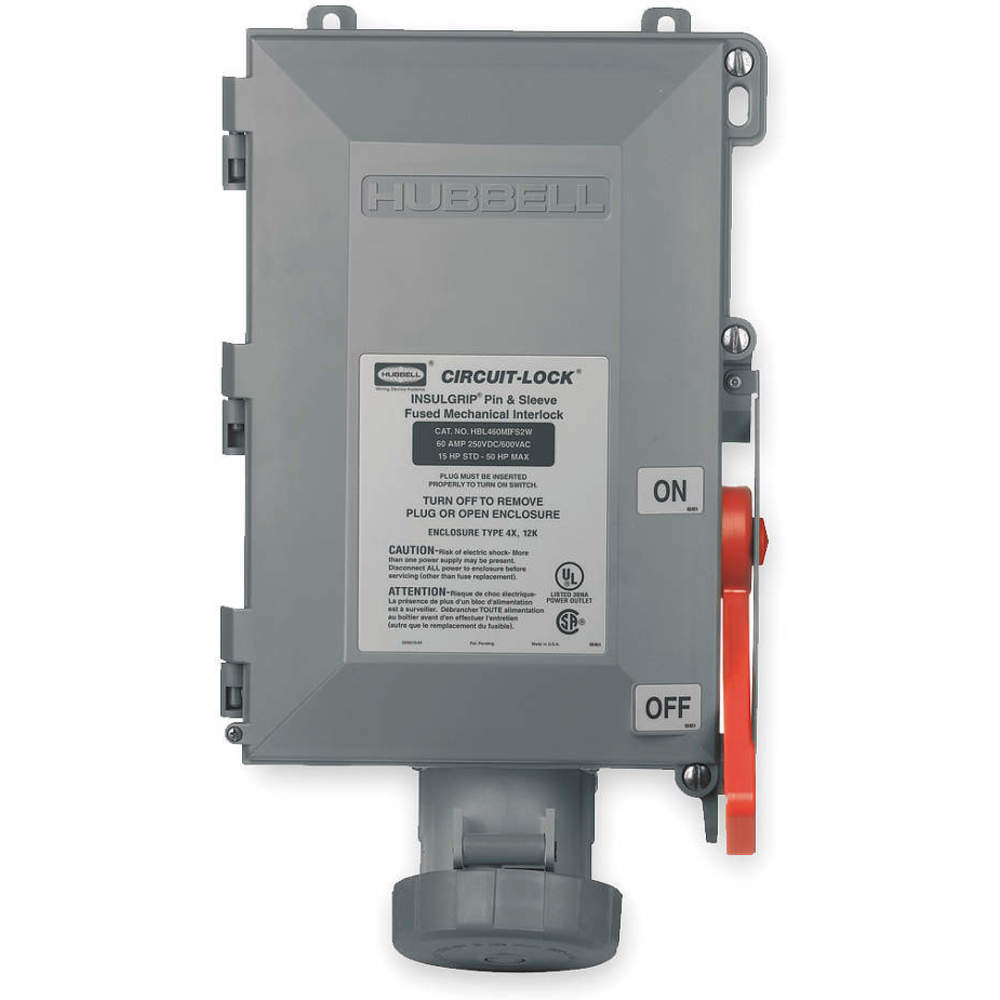

HUBBELL WIRING DEVICE-KELLEMS HBL460MIS2W Mechanically Interlock Receptacle, 60 A, 600 VAC, 3 Pole
Get it by Monday, Jun 16
€2,475.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Mechanical Interlock |
| Amps | 60A |
| Exposure Conditions | Wateright |
| Hp | 50 hp |
| Hub | 1 1/4" |
| Material | Thermoplastic |
| Mounting Style | Screw |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 1, 3 |
| Type | Insulgrip, Pin And Sleeve, Unfused |
| Use With | 5HJ29 |
| Wattage | 36000 W |
| Wire Size | 8 AWG to 2 AWG |
| Circuit Breaker | No |
| Circuit Breaker Amp Rating | 60A |
| Compatible Plug Grainger Part Number | 5HJ29 |
| Compatible Plug Manufacturer Part Number | 5HJ29 |
| Contact Material | Brass |
| Current Rating | 60A |
| Electrical Connection Type | Pin and Sleeve |
| Fuse Protection | Non-Fused |
| Grounding | Grounded |
| Horsepower Rating | 50 hp |
| Housing Material | Thermoplastic |
| Hub Diameter | 1" |
| Includes | Mounting Feet |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP66 |
| Locking Handle | Yes |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 8 AWG |
| Nema Enclosure Rating | Not Rated |
| Overall Height | 15.36" |
| Overall Width | 10.18" |
| Resistance Properties | Watertight |
| Reverse Service | No |
| Standards | CULUS |
| Ul 94 Flammability Rating | V-0, 5VA |
| Viewing Window | No |
| Voltage Rating | 600V AC/250V DC |
| Ship weight (kg) | 8.19 |
| Ship height (cm) | 39.01 |
| Ship length (cm) | 51.56 |
| Ship width (cm) | 25.86 |
| HS code | 8536908085 |
| Country of Origin | US |
| Product | Model | Amps | Color | Current Rating | Hp | Item | Number Of Poles | Number Of Wires | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL420MI7W | 20 | Red | 20 A | 10 | Circuit-lock Watertight Mechanical Interlock Device | 3 | 4 | 3 | €1,806.09 | |
 |
HBL420MI9W | 20 | Blue | 20 A | 5 | Circuit-lock Watertight Mechanical Interlock Device | 3 | 4 | 3 | €1,806.09 | |
 |
HBL420MI5W | 20 | Black | 20 A | 10 | Circuit-lock Watertight Mechanical Interlock Device | 3 | 4 | 3 | €1,806.09 | |
 |
HBL420MI12W | 20 | Orange | 20 A | 2 | Circuit-lock Watertight Mechanical Interlock Device | 3 | 4 | 1 | €1,806.09 | |
|
HBL430MIFS2W | 30 | - | 30 A | 20 | Mechanical Interlock | 3 | 4 | 1/3 | €3,222.80 | |
|
HBL460MIFS2W | 60 | - | 60 A | 50 | Mechanical Interlock | 3 | 4 | 1/3 | €3,403.13 | |
 |
HBL430MIS2W | 30 | - | 30 A | 20 | Mechanical Interlock | 3 | 4 | 1/3 | €1,835.04 |
