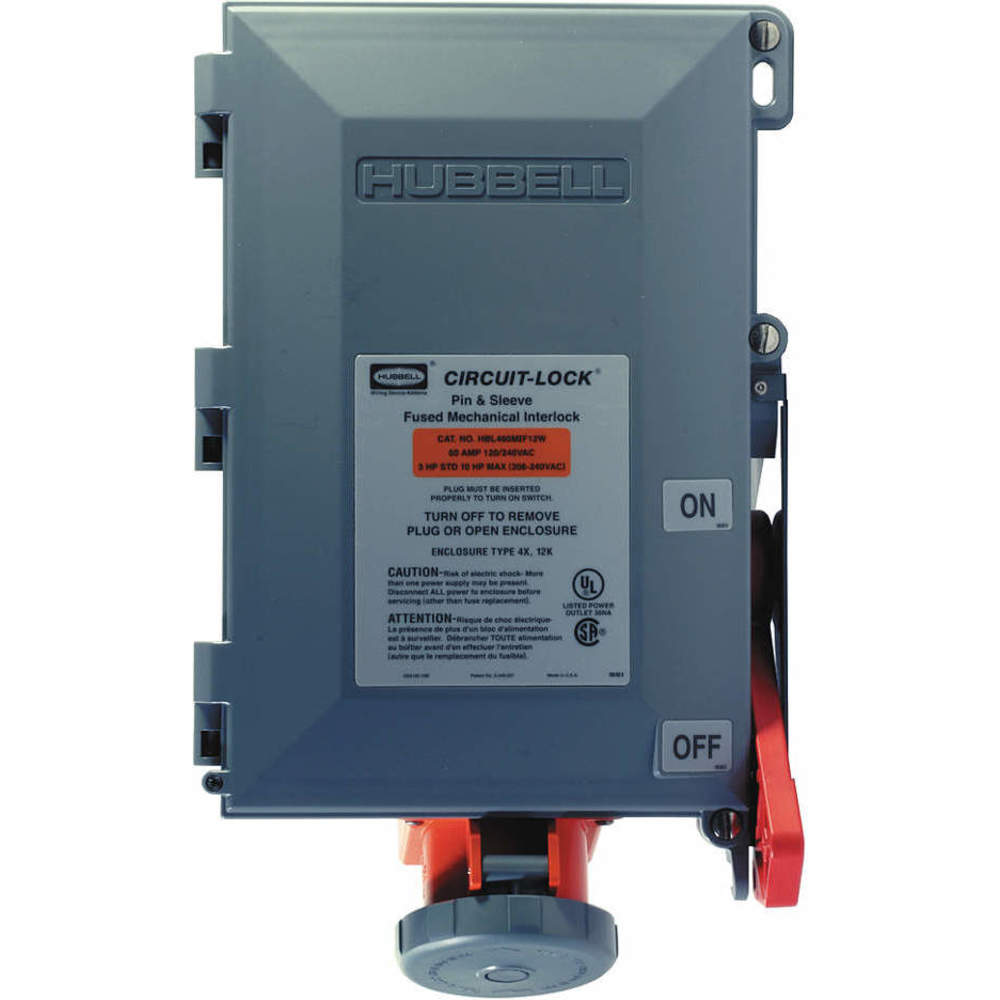

HUBBELL WIRING DEVICE-KELLEMS HBL460MIF12W Mechanically Interlocked Receptacle, 3 Pole, 125 - 250 V, 60 A
Get it by Thursday, Jun 19
€3,351.86 /unit
Add To Cart
Request a Quote
Payment
Get it by Thursday, Jun 19
Payment
| Item | Circuit-lock Watertight Mechanical Interlock Device |
| Amps | 60A |
| Color | Orange |
| Exposure Conditions | Wateright |
| Material | Thermoplastic |
| Mounting Style | Screw |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 1 |
| Receptacle Type | Pin And Sleeve |
| Wattage | 15000 W |
| Wire Size | 8 AWG to 2 AWG |
| Circuit Breaker | No |
| Circuit Breaker Amp Rating | 60A |
| Contact Material | Brass |
| Current Rating | 60A |
| Electrical Connection Type | Pin and Sleeve |
| Fuse Protection | Fused |
| Fuse Type | Class J |
| Grounding | Grounded |
| Housing Color | Orange |
| Housing Material | Thermoplastic |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP66 |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 2 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 8 AWG |
| Nema Enclosure Rating | Not Rated |
| Overall Height | 15.36" |
| Overall Width | 10.18" |
| Resistance Properties | Watertight |
| Reverse Service | No |
| Standards | CSA CERTIFIED, CULUS |
| Ul 94 Flammability Rating | V-0, 5VA |
| Viewing Window | No |
| Voltage Rating | 120/240V AC |
| Ship weight (kg) | 8.53 |
| Ship height (cm) | 39.01 |
| Ship length (cm) | 48.77 |
| Ship width (cm) | 25.86 |
| HS code | 8536908085 |
| Country of Origin | US |
| Product | Model | Amps | Color | Current Rating | Hp | Item | Number Of Poles | Number Of Wires | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL420MI7W | 20 | Red | 20 A | 10 | Circuit-lock Watertight Mechanical Interlock Device | 3 | 4 | 3 | €1,806.09 | |
 |
HBL420MI9W | 20 | Blue | 20 A | 5 | Circuit-lock Watertight Mechanical Interlock Device | 3 | 4 | 3 | €1,806.09 | |
 |
HBL420MI5W | 20 | Black | 20 A | 10 | Circuit-lock Watertight Mechanical Interlock Device | 3 | 4 | 3 | €1,806.09 | |
 |
HBL420MI12W | 20 | Orange | 20 A | 2 | Circuit-lock Watertight Mechanical Interlock Device | 3 | 4 | 1 | €1,806.09 | |
 |
HBL430MIFS2W | 30 | - | 30 A | 20 | Mechanical Interlock | 3 | 4 | 1/3 | €3,222.80 | |
|
HBL460MIFS2W | 60 | - | 60 A | 50 | Mechanical Interlock | 3 | 4 | 1/3 | €3,403.13 | |
 |
HBL430MIS2W | 30 | - | 30 A | 20 | Mechanical Interlock | 3 | 4 | 1/3 | €1,835.04 |
