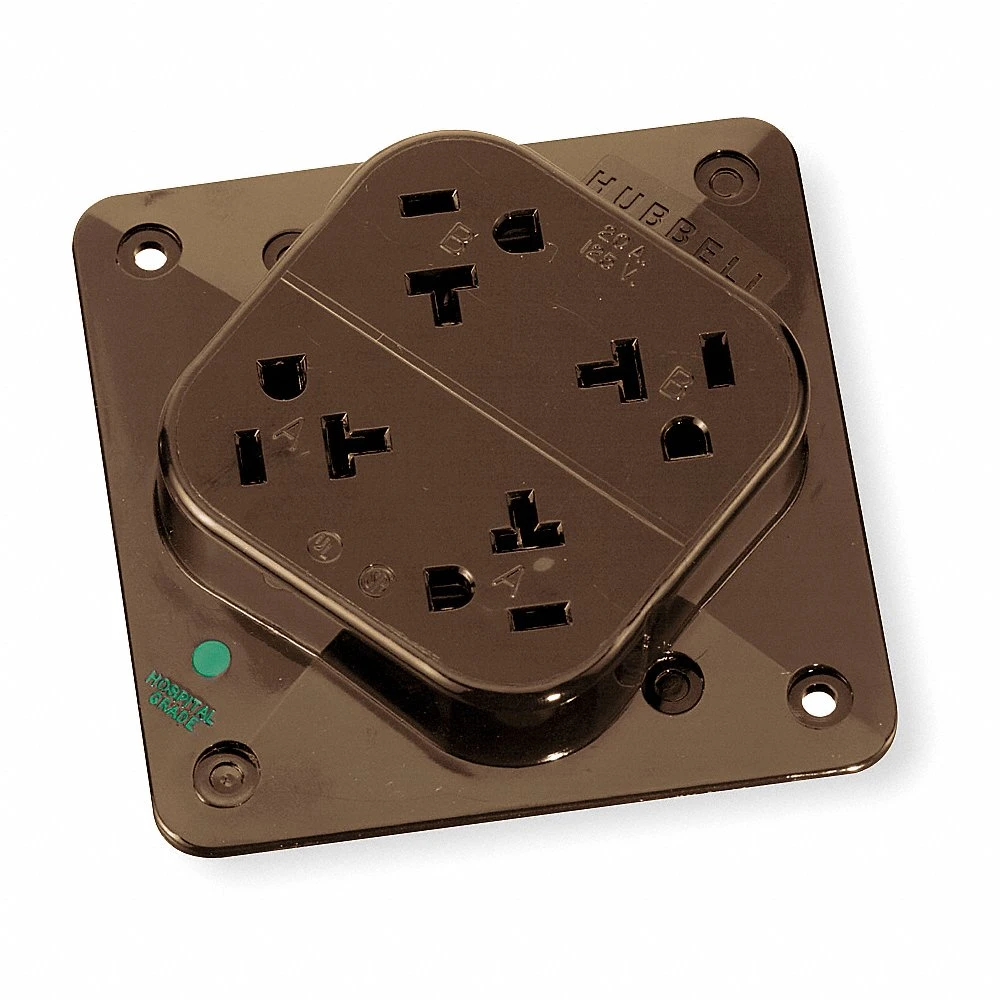

| Item | Four Outlet Receptacle |
| Amps | 20A |
| Application Environment | Hospital Grade |
| Color | Brown |
| Connectivity | Back Wired Screw Terminals |
| Duty | Heavy Duty |
| Grade | Hospital |
| Height | 23/25" |
| Length | 4.3" |
| Material | Polycarbonate |
| Max. Hp | 1 hp |
| Mounting | Screw Mounting |
| Mounting Type | Surface |
| Nema Rating | NEMA 5-20R |
| Number Of Gangs | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Quad |
| Phase | 1 |
| Power Indicator | No |
| Surge Protection | No |
| Voltage | 125V AC |
| Wattage | 2500 W |
| Weather Resistant | No |
| Width | 4.3" |
| Wire Size | 12 AWG |
| Wiring Method | Back |
| Afci | No |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 20A |
| Face Plate Height | 4.3" |
| Gfci | No |
| Grounding | Grounded |
| Housing Color | Brown |
| Mount Hole Center-to-center Height | 3.4" |
| Mount Hole Center-to-center Width | 3.4" |
| Mount Type | Surface |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 4 |
| Polarized | Yes |
| Receptacle Type | Quad |
| Resistance Property | General Purpose |
| Special Resistance Properties | Impact Resistant |
| Standards | CSA CERTIFIED C22.2 NO. 42 FILE 285, NEMA WD-6, UL 498 FILE E2186 |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.34 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 10.92 |
| HS code | 8536698000 |
| Country of Origin | US |
