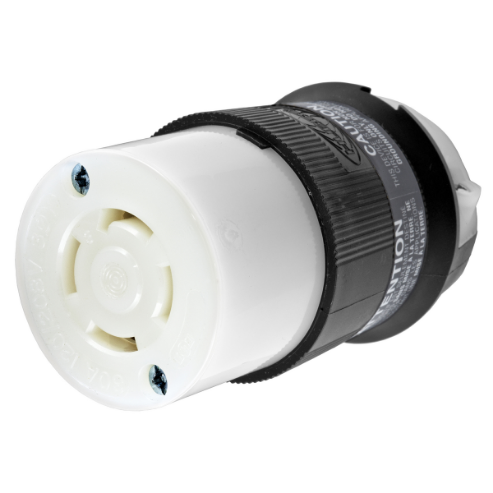

HUBBELL WIRING DEVICE-KELLEMS HBL3433C Female Connector, 30A, 3-Phase, Wye 120/208VAC, 4-Pole, 4-Wire Non-Grounding
Get it by Tuesday, Jun 17
€147.28 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Locking Connector |
| Amps | 30A |
| Antimicrobial | No |
| Cable Range | 0.35" to 1.15" |
| Color | Black, White |
| Connectivity | Pressure Terminal Screws |
| Cord Size | 0.35" to 1.15" |
| Grade | Industrial, Commercial |
| Height | 3.86" |
| Insulation | Insulated Body |
| Length | 2.33" |
| Material | Nylon |
| Mounting | Cord Mounted |
| Nema Configuration | Non-NEMA |
| Number Of Poles | 4 |
| Number Of Wires | 4 |
| Phase | 3 |
| Type | Non Shrouded |
| Width | 2.33" |
| Wire Size | 16 AWG to 8 AWG |
| Wiring Type | Standard |
| Cap Type | No Cap Or Cover |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Current Rating | 30A |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 1.15" |
| For Minimum Cable Diameter | 0.35" |
| Grounding | Non Grounded |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Ip Rating | IP20 |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 16 AWG |
| Nema Receptacle Configuration | Non-NEMA |
| Outside Diameter | 2.33" |
| Overall Length | 2.33" |
| Power Indicating Light | No |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Shrouded | No |
| Standards | UL/CSA |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 120/208V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 9.8 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 5.92 |
| HS code | 8538908080 |
| Country of Origin | US |
| Product | Model | Amps | Cable Range | Color | Connectivity | Cord Size | Current Rating | Grade | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4729CBK | 15 | - | Black | Pressure Terminal Screws | 0.23 to 0.72" | 15 A | Industrial/Commercial | 2.78" | €57.69 | |
 |
HBL2313BK | 20 | 0.360-0.930" | Black | Screw Terminals | 0.36 to 0.93" | 20 A | Industrial/Commercial | 3.86" | €64.21 | |
 |
HBL2613BK | 30 | 0.360-0.930" | Black | Pressure Terminal Screws | 0.36 to 0.93" | 30 A | Industrial/Commercial | 3.86" | €126.83 | |
 |
HBL2323BK | 20 | - | Black | Pressure Terminal Screws | 0.36 to 0.93" | 20 A | Industrial/Commercial | 3.86" | €64.21 | |
 |
HBL2623BK | 30 | - | Black | Pressure Terminal Screws | 0.36 to 0.93" | 30 A | Industrial/Commercial | 2.26" | €128.07 | |
 |
HBL2513BK | 20 | - | Black | Pressure Terminal Screws | 0.35 to 1.15" | 20 A | Industrial/Commercial | 2.33" | €137.28 | |
 |
HBL2813BK | 30 | - | Black | Pressure Terminal Screws | 0.35 to 1.15" | 30 A | Industrial/Commercial | 3.86" | €174.99 |
