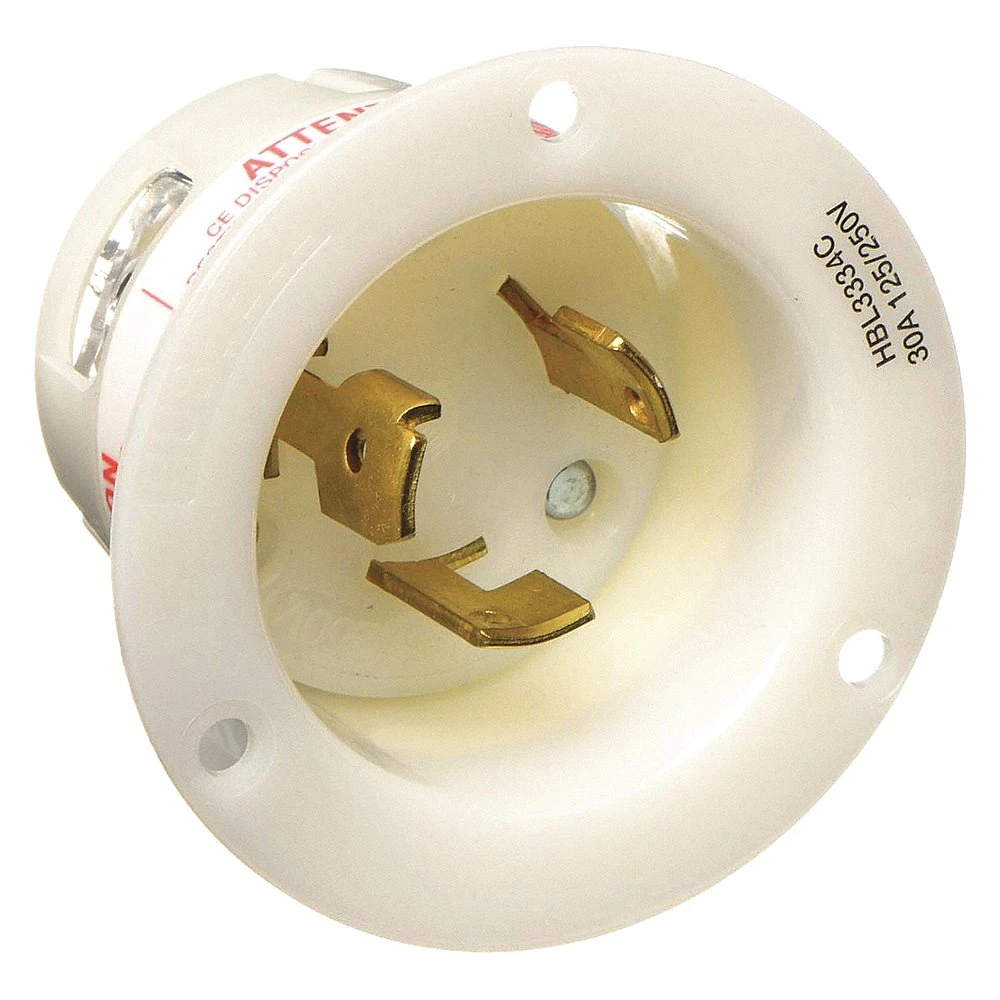

| Item | Flanged Inlet |
| Amps | 30A |
| Color | White |
| Connectivity | Back Wired Screw Terminals |
| Grade | Grade Industrial |
| Height | 2.22" |
| Insulation | Insulated Body |
| Ip Rating | IP44 |
| Length | 2 22/25" |
| Material | Nylon |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Configuration | Non-NEMA |
| Nema Rating | NEMA 12, NEMA 4X |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Phase | 1 |
| Type | Non Shrouded |
| Wattage | 7500 W |
| Width | 2 22/25" |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Current Rating | 30A |
| Flange Diameter | 2.88" |
| Flange Type | Flanged |
| Housing Color | White |
| Mount Type | Flush |
| Nema Enclosure Rating | NEMA 4X, NEMA 12 |
| Nema Plug Configuration | Non-NEMA |
| Number Of Blades | 3 |
| Resistance Properties | Impact Resistant |
| Shrouded | No |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 5.64 |
| Ship length (cm) | 7.32 |
| Ship width (cm) | 7.32 |
| HS code | 8536698000 |
| Country of Origin | US |
