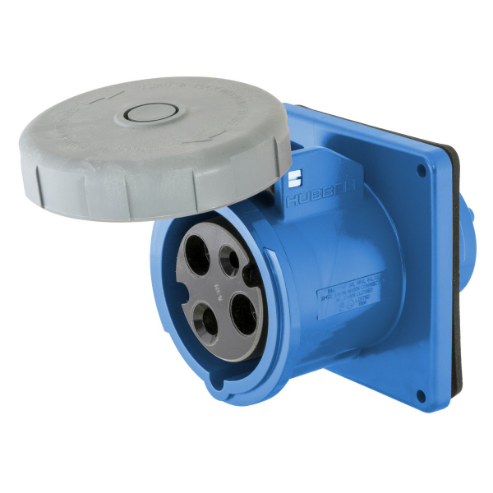

HUBBELL WIRING DEVICE-KELLEMS HBL320R6W Iec Pin And Sleeve Receptacle, Female, 20 A, 250 VAC, 2 Pole, Blue
Get it by Monday, Jun 16
€191.27 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | IEC Pin and Sleeve Receptacle |
| Amps | 20A |
| Color | Blue |
| Exposure Conditions | Wateright |
| Material | Thermoplastic |
| Mounting Style | Screw |
| Number Of Poles | 2.0 |
| Number Of Wires | 3 |
| Phase | 1 |
| Type | Female Receptacle |
| Voltage | 250V |
| Wire Size | 14 AWG to 10 AWG |
| Cap Type | Spring Loaded Cap |
| Connection Orientation | Straight |
| Current Rating | 16A / 20A |
| Face Diameter | 2.85" |
| Features | Color Coded |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 2 hp |
| Housing Color | Blue |
| Housing Material | Thermoplastic |
| Housing Material Grade | Grade Zytel 101 |
| Ip Rating | IP67 |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 12 AWG |
| Nema Enclosure Rating | 4X |
| Number Of Gangs | 1 |
| Power Indicating Light | No |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | CSA CERTIFIED C22.2 NO. 182.1, IEC 60309-2, UL E146032, UL IEC 60309-1 |
| Switch Rated | No |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 10.92 |
| HS code | 8536904000 |
| Country of Origin | US |
| Model | Amps | Current Rating | Hp | Wire Size | Price | |
|---|---|---|---|---|---|---|
| HBL360R6W | 60 | 60 A | - | #8 - #2 AWG | €732.01 | |
| HBL3100R6W | 100 | 100 A | 15 | #3 - #1/0 AWG | €603.82 | |
| HBL330R6W | 30 | 30 A | 2 | #12 - #8 AWG | €435.96 |
