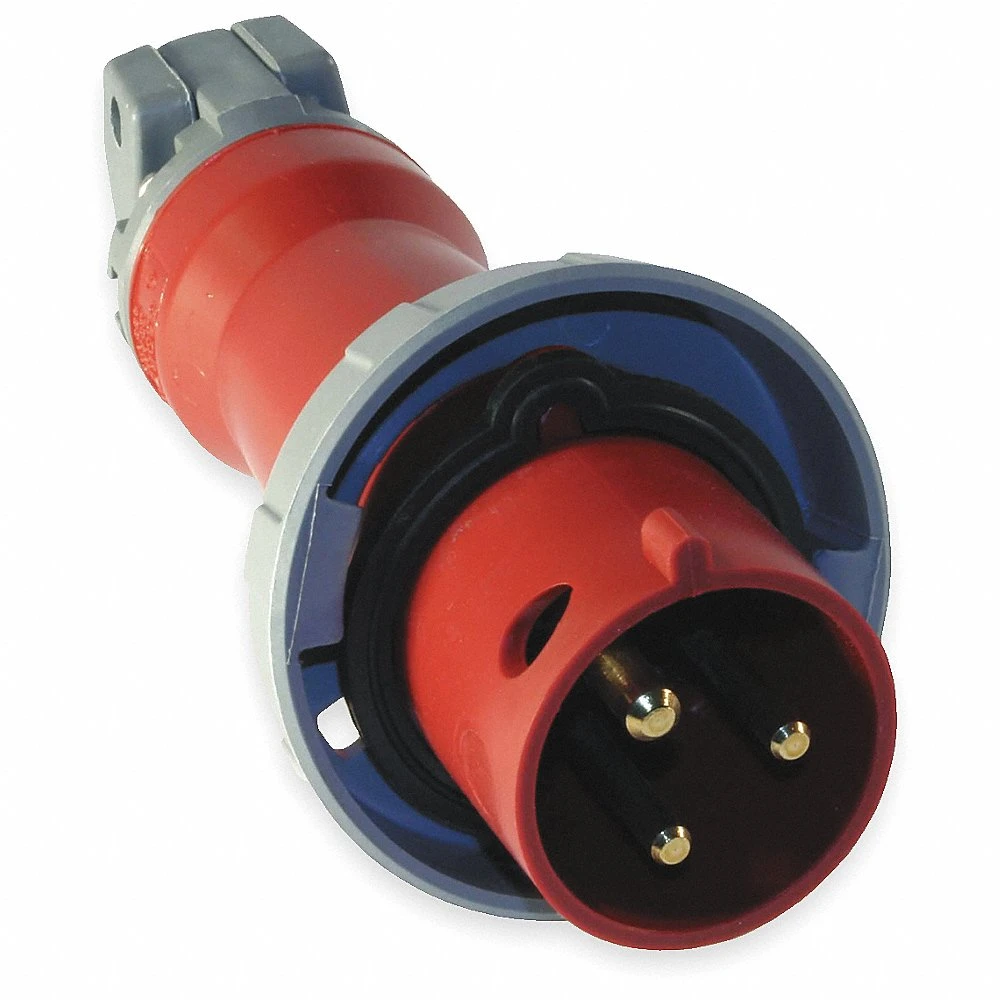

HUBBELL WIRING DEVICE-KELLEMS HBL320P7W Iec Pin And Sleeve Plug, Male, 20 A, 480 VAC, 2 Pole, Red
Get it by Monday, Jun 16
€397.61 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | IEC Pin and Sleeve Plug |
| Amps | 20A |
| Color | Red |
| Cord Type | Portable |
| Exposure Conditions | Wateright |
| Material | Composite |
| Mounting Style | Cord |
| Number Of Poles | 2.0 |
| Number Of Wires | 3 |
| Phase | 1 |
| Type | Plug |
| Wire Size | 14 AWG to 10 AWG |
| Cap Type | No Cap Or Cover |
| Connection Orientation | Straight |
| Current Rating | 20A |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin, Solid One Piece Pins Machined from Solid Brass |
| For Maximum Cable Diameter | 0.78" |
| For Minimum Cable Diameter | 0.36" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 5 hp |
| Housing Color | Red |
| Housing Material | Polybutylene Terephthalate |
| Ip Rating | IP67 |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 14 AWG |
| Overall Length | 6.61" |
| Power Indicating Light | No |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | CSA CERTIFIED LR280C, IEC 60309-1, IEC 60309-2, UL 1682, UL 1686C2 |
| Switch Rated | No |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 480V AC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 23.88 |
| Ship length (cm) | 16.79 |
| Ship width (cm) | 11.18 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Amps | Color | Current Rating | Hp | Number Of Poles | Number Of Wires | Phase | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL3100P4W | 100 | Yellow | 100 A | - | 2 | 3 | 1 | 125 | €940.77 | |
|
HBL330P4W | 30 | Yellow | 30 A | - | 2 | 3 | 1 | 125 | €479.80 | |
 |
HBL330P7W | 30 | Red | 30 A | - | 2 | 3 | 1 | 480 | €475.62 | |
|
HBL360P4W | 60 | Yellow | 60 A | - | 2 | 3 | 1 | 125 | €499.50 | |
|
HBL360P7W | 60 | Red | 60 A | - | 2 | 3 | 1 | 480 | €499.50 | |
 |
HBL5100P5W | 100 | Black | 100 A | 30 | 4 | 5 | 3 | 600 | €1,102.09 | |
 |
HBL5100P7W | 100 | Red | 100 A | 30 | 4 | 5 | 3 | 277/480 | €1,102.09 |
