HUBBELL WIRING DEVICE-KELLEMS HBL320C7W Iec Pin And Sleeve Connector, Female, 20 A, 480 VAC, 2 Pole, Red
Get it by Monday, Jun 16
€442.96 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | IEC Pin and Sleeve Connector |
| Amps | 20A |
| Color | Red |
| Conductor Size | #14 AWG to #10 AWG |
| Exposure Conditions | Wateright |
| Mounting Style | Cord |
| Number Of Conductors | 3 |
| Number Of Poles | 2.0 |
| Number Of Wires | 3 |
| Phase | 1 |
| Type | Connector |
| Cap Type | Spring Loaded Cap |
| Compatible With Series | HBL Heavy Duty |
| Connection Orientation | Straight |
| Current Rating | 20A |
| Face Diameter | 2.85" |
| Features | Color Coded Housings for Easy Identification, Corrosion Resistant Self Closing Gasketed Cover, Insulated Non Metallic Housing |
| For Maximum Cable Diameter | 0.83" |
| For Minimum Cable Diameter | 0.33" |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 5 hp |
| Housing Color | Red |
| Housing Material | PBT |
| Housing Material Grade | Grade Zytel 801 |
| Ip Rating | IP68, IP69K |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 14 AWG |
| Nema Enclosure Rating | 4X |
| Outside Diameter | 3.1" |
| Overall Length | 7.21" |
| Power Indicating Light | No |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight |
| Reverse Service | No |
| Shrouded | Yes |
| Standards | CSA CERTIFIED LR280C, UL CLASSIFIED TO IEC 60309-1 IEC 60309-2, UL E146033 |
| Switch Rated | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 480V AC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 7.87 |
| Ship length (cm) | 18.31 |
| Ship width (cm) | 7.87 |
| HS code | 8536904000 |
| Country of Origin | US |
| Product | Model | Amps | Color | Conductor Size | Current Rating | Hp | Number Of Conductors | Number Of Poles | Number Of Wires | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL3100C6W | 100 | Blue | #3 - #1/0 AWG | 100 A | 15 | 3 | 2 | 3 | €1,106.29 | |
|

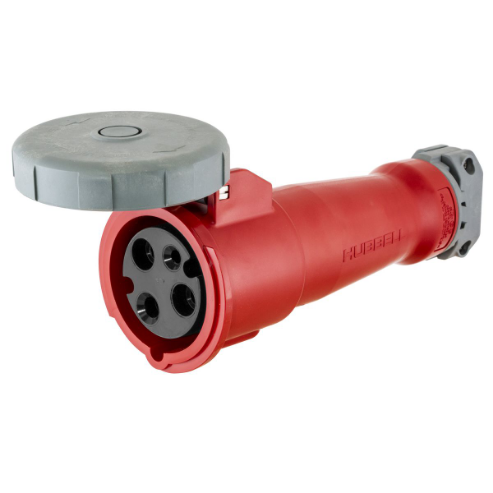

HBL3100C7W | 100 | Red | #3 - #1/0 AWG | 100 A | - | 3 | 2 | 3 | €1,106.29 | |
|
HBL330C7W | 30 | Red | #12 - #8 AWG | 30 A | - | 3 | 2 | 3 | €486.09 | |
|
HBL360C7W | 60 | Red | #8 - #2 AWG | 60 A | - | 3 | 2 | 3 | €785.71 | |
 |
HBL5100C5W | 100 | Black | #3 - #1/0 AWG | 100 A | 30 | 5 | 4 | 5 | €1,288.57 | |
 |
HBL5100C7W | 100 | Red | #3 - #1/0 AWG | 100 A | 30 | 5 | 4 | 5 | €1,439.33 | |
|
HBL520C7W | 20 | Red | #14 - #10 AWG | 20 A | 5 | 5 | 4 | 5 | €460.95 |
