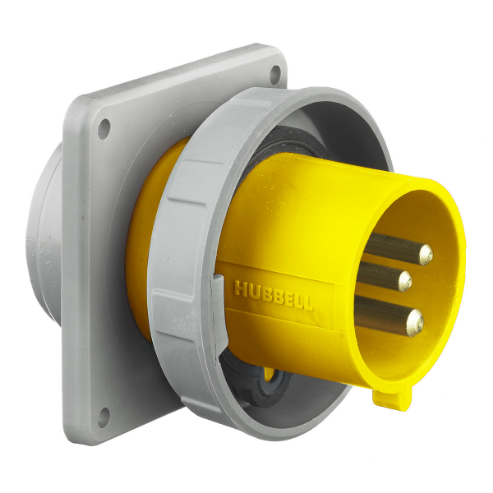

HUBBELL WIRING DEVICE-KELLEMS HBL3100B4W Iec Pin And Sleeve Inlet, Male, 100 A, 125 VAC, 2 Pole, Yellow
Get it by Wednesday, Jun 18
€1,342.42 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | IEC Pin and Sleeve Inlet |
| Amps | 100A |
| Color | Yellow |
| Exposure Conditions | Wateright |
| Material | Thermoplastic |
| Mounting Style | Screw |
| Number Of Poles | 2.0 |
| Number Of Wires | 3 |
| Phase | 1 |
| Temperature Range | -40°C to +75°C |
| Type | Inlet |
| Voltage | 125V |
| Wattage | 12500 W |
| Wire Size | #3 AWG to #1/0 AWG |
| Compatible With Series | HBL Heavy Duty |
| Current Rating | 100A |
| Face Diameter | 3.44" |
| Features | Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin |
| Flange Diameter | 3.94" |
| Flange Type | Flanged |
| Grounding | Grounded |
| Grounding Style | IEC |
| Horsepower Rating | 5 hp |
| Housing Color | Yellow |
| Housing Material | Polybutylene Terephthalate |
| Insulation Material | Thermoplastic |
| Ip Rating | IP67 |
| Market | Industrial |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 1/0 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 3 AWG |
| Resistance Properties | Impact Resistant, Moisture Resistant, Watertight |
| Shrouded | Yes |
| Standards | CSA CERTIFIED LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2 |
| Ul 94 Flammability Rating | V-0 |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Ship weight (kg) | 1.37 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 14.61 |
| HS code | 8536904000 |
| Country of Origin | US |
