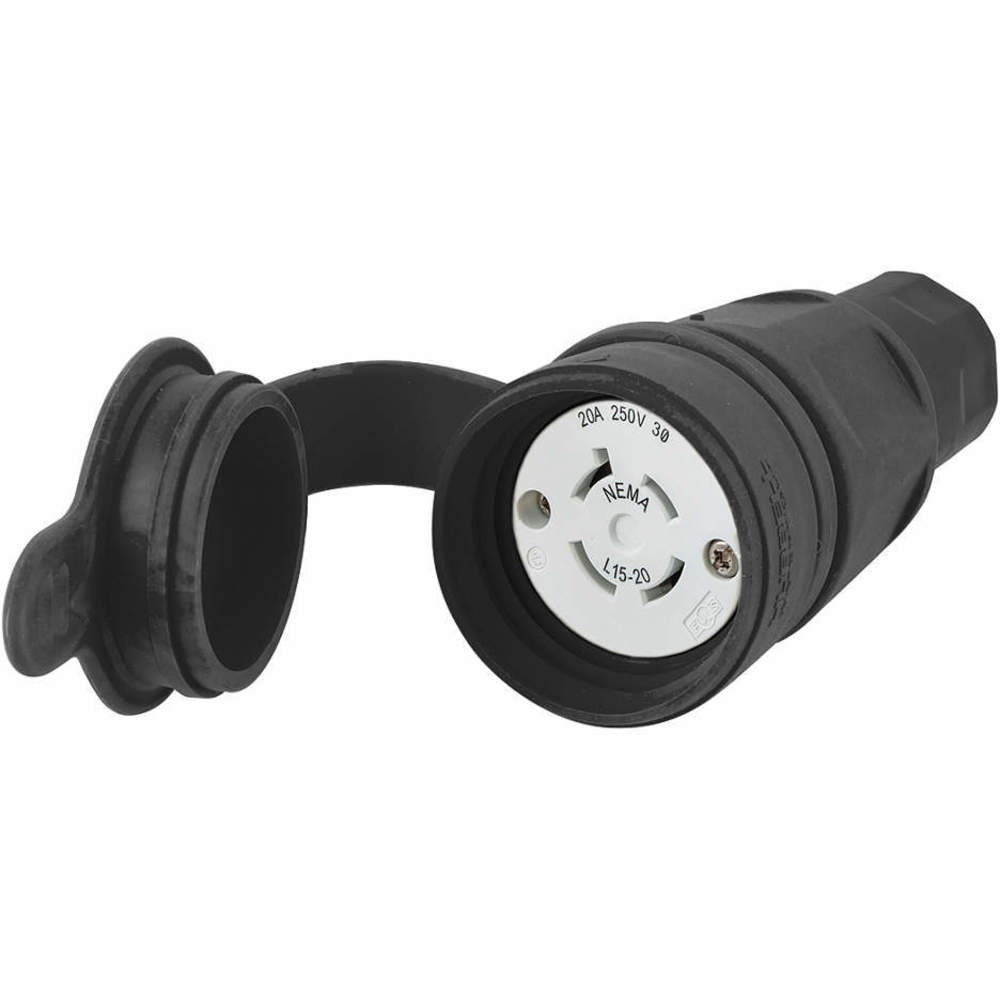

HUBBELL WIRING DEVICE-KELLEMS HBL27W75BK Connector, 20A, 3 Phase, 250VAC, 3 Pole, 4 Wire, Black
Get it by Tuesday, Jun 17
€202.54 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Watertight Locking Connector |
| Amps | 20A |
| Antimicrobial | No |
| Color | Black |
| Cord Size | 0.325" to 0.875" |
| Grade | Grade Industrial |
| Height | 5.69" |
| Length | 2.51" |
| Material | TPE, Valox |
| Nema Plug Configuration | L15-20R |
| Nema Rating | NEMA L15-20R |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 3 |
| Power Indicator | No |
| Type | Non Shrouded |
| Width | 2.51" |
| Wiring Type | Standard |
| Cap Type | Press On Cap |
| Connection Orientation | Straight |
| Contact Material | Nickel-Plated Brass |
| Current Rating | 20A |
| For Maximum Cable Diameter | 0.875" |
| For Minimum Cable Diameter | 0.375" |
| Horsepower Rating | 3 hp |
| Housing Color | Black |
| Housing Material | Thermoplastic Elastomer |
| Ip Rating | IP69K |
| Market | Industrial |
| Maximum Operating Temperature | 60°C |
| Maximum Wire Size | 10 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12 |
| Nema Receptacle Configuration | L15-20R |
| Outside Diameter | 2.51" |
| Overall Length | 2.51" |
| Resistance Properties | Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant |
| Shrouded | Yes |
| Standards | ANSI |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.35 |
| Ship height (cm) | 14.45 |
| Ship length (cm) | 6.38 |
| Ship width (cm) | 6.38 |
| Country of Origin | US |
| Product | Model | Amps | Color | Cord Size | Current Rating | Height | Hp | Length | Nema Plug Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL25W34 | 15 | Yellow | 0.300" to 0.625" | 15 A | 4.62" | 2.0 | 1.85" | L7-15R | €110.68 | |
 |
HBL25W47A | 15 | Yellow | 0.300" to 0.625" | 15 A | 4.62" | 0.5 | 1.85" | L5-15R | €72.29 | |
 |
HBL25W47BK | 15 | Black | 0.375" to 1.125" | 15 A | 4.62" | 0.5 | 1.85" | L5-15R | €72.29 | |
 |
HBL25W49 | 15 | Yellow | 0.300" to 0.625" | 15 A | 4.62" | 1.5 | 1.85" | L6-15R | €92.60 | |
 |
HBL27W08 | 20 | Yellow | 0.325" to 0.875" | 20 A | 5.69" | - | 2.51" | Non-NEMA, 20A | €107.97 | |
 |
HBL27W09 | 20 | Yellow | 0.325" to 0.875" | 20 A | 5.67" | - | 2.77" | Non-NEMA, 20A | €202.82 | |
 |
HBL27W47 | 20 | Yellow | 0.325" to 0.875" | 20 A | 5.69" | 1.0 | 2.51" | L5-20R | €139.86 |
