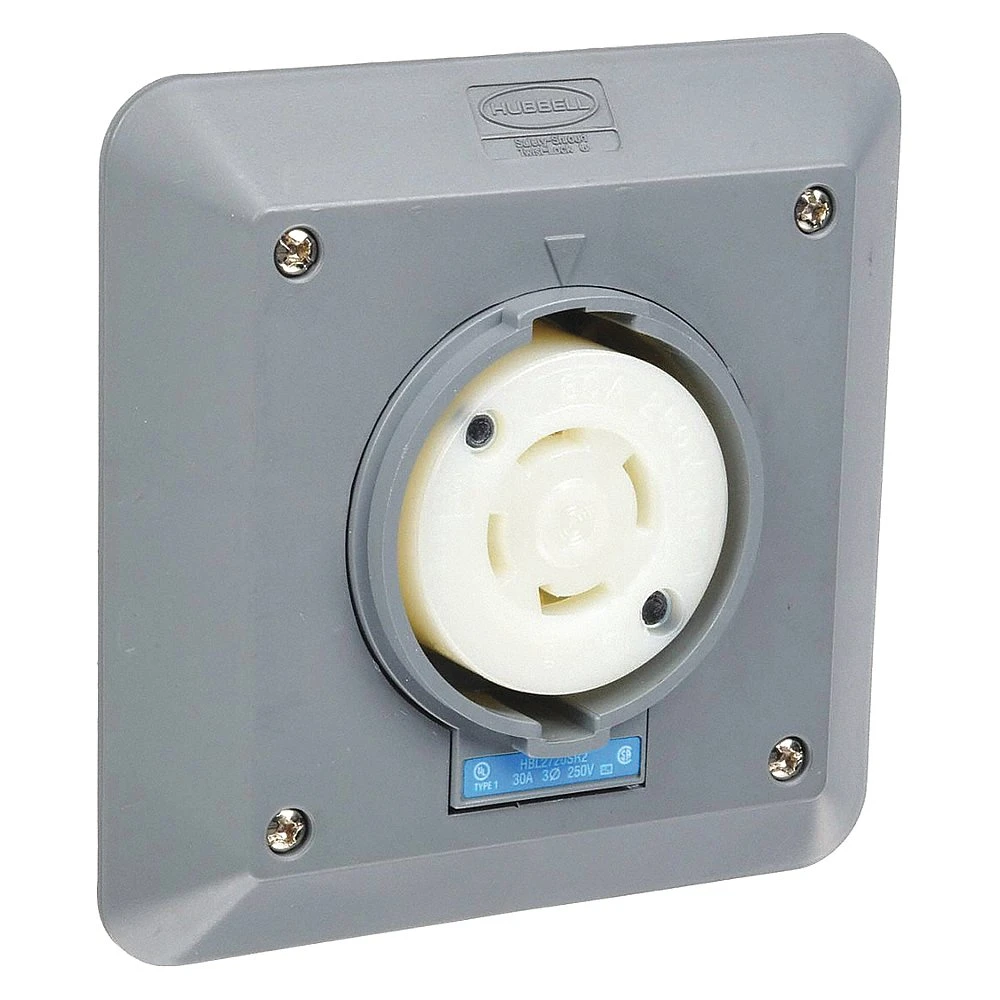

| Item | Semiflush Mount Shrouded Receptacle |
| Amps | 30A |
| Color | Gray |
| Connectivity | Back Wired Screw Terminals |
| Grade | Grade Industrial |
| Height | 2.22" |
| Length | 5 3/25" |
| Material | Impact Modified Pbt |
| Max. Hp | 3 hp |
| Mounting | Screw Mounting |
| Mounting Type | Semi Flush Mount |
| Nema Rating | NEMA L15-30R |
| Number Of Poles | 3 |
| Phase | 3 |
| Type | Shrouded |
| Voltage | 250V |
| Wattage | 7500 W |
| Width | 5 3/25" |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Afci | No |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 30A |
| Flange Type | Non Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grounding | Grounded |
| Horsepower Rating | 3 hp |
| Housing Color | Gray |
| Housing Material | Valox |
| Ip Rating | IP20 |
| Market | Industrial |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 16 AWG |
| Mount Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Receptacle Configuration | L15-30R |
| Number Of Gangs | 2 |
| Number Of Wires | 4 |
| Polarized | Yes |
| Resistance Properties | Corrosion Resistant, Impact Resistant |
| Shrouded | Yes |
| Standards | CSA CERTIFIED C22.2 NO. 42, FEDERAL SPECIFICATION W-C-596, UL 498 |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 5.64 |
| Ship length (cm) | 13 |
| Ship width (cm) | 13 |
| HS code | 8536698000 |
| Country of Origin | US |
