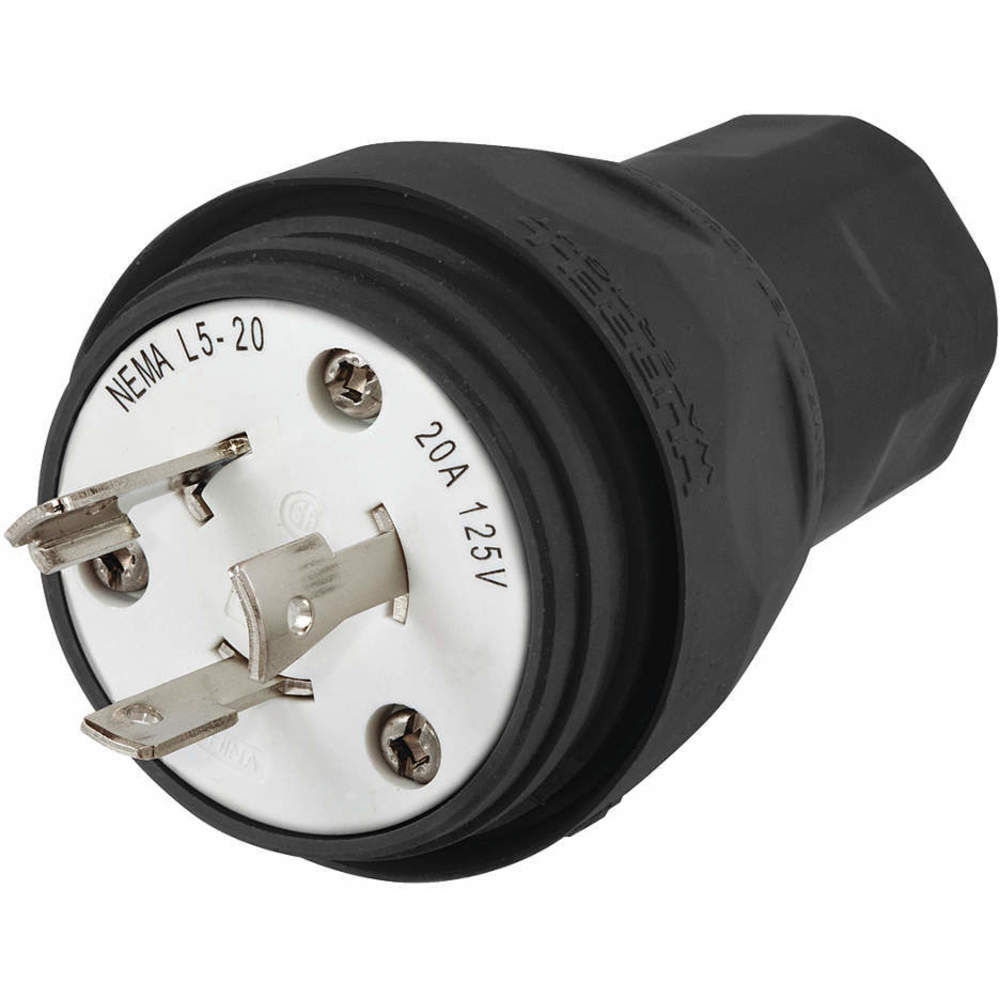

HUBBELL WIRING DEVICE-KELLEMS HBL26W47BK Plug, 20A, 125VAC, 2 Pole, 3 Wire, Thermoplastic Elastomer, Black
Get it by Tuesday, Jun 17
€105.41 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Watertight Locking Plug |
| Amps | 20A |
| Antimicrobial | No |
| Color | Black |
| Cord Size | 0.325" to 0.875" |
| Grade | Grade Industrial |
| Height | 3 24/25" |
| Hp | 1/2 hp |
| Length | 2.51" |
| Material | TPE, Valox |
| Nema Plug Configuration | L5-20P |
| Nema Rating | NEMA L5-20P |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Type | Shrouded |
| Voltage | 125V |
| Width | 2.51" |
| Wiring Type | Standard |
| Blade Material | Nickel Plated Brass |
| Body Length | 2.51" |
| Connection Orientation | Straight |
| Current Rating | 20A |
| For Maximum Cable Diameter | 0.875" |
| For Minimum Cable Diameter | 0.375" |
| Horsepower Rating | 1/2 hp |
| Housing Color | Black |
| Housing Material | Thermoplastic Elastomer |
| Ip Rating | IP69K |
| Market | Industrial |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Number Of Blades | 3 |
| Outside Diameter | 2.51" |
| Overall Length | 2.51" |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, Watertight |
| Shrouded | Yes |
| Standards | ANSI, NEMA WD-1 AND WD-6 |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 10.06 |
| Ship length (cm) | 6.38 |
| Ship width (cm) | 6.38 |
| Country of Origin | CN |
| Product | Model | Amps | Cable Range | Color | Cord Size | Current Rating | Height | Hp | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2311SW | 20 | 0.360-0.930" | Black, White | 0.36 to 0.93" | 20 A | 4.4" | 1 | 66 | €109.73 | |
 |
HBL2321SW | 20 | 0.360-0.930" | Black, White | 0.36 to 0.93" | 20 A | 4.4" | 2 | 66 | €104.25 | |
 |
HBL2331SW | 20 | - | Black, White | 0.36 to 0.93" | 20 A | 4.4" | 2 | 66 | €148.04 | |
 |
HBL2411SW | 20 | 0.350-1.150" | Black/White | 0.35 to 1.15" | 20 A | 4.4" | 2 L-L (1 L-N) | 66 | €175.63 | |
 |
HBL2421SW | 20 | 0.350-1.150" | Black/White | 0.35 to 1.15" | 20 A | 4.4" | 3 | 66 | €160.96 | |
 |
HBL2431SW | 20 | 0.350-1.150" | Black/White | 0.35 to 1.15" | 20 A | 4.4" | 5 | 66 | €182.34 | |
 |
HBL2511SW | 20 | 0.350-1.150" | Black/White | 0.35 to 1.15" | 20 A | 4.4" | 2 | 66 | €136.56 |
