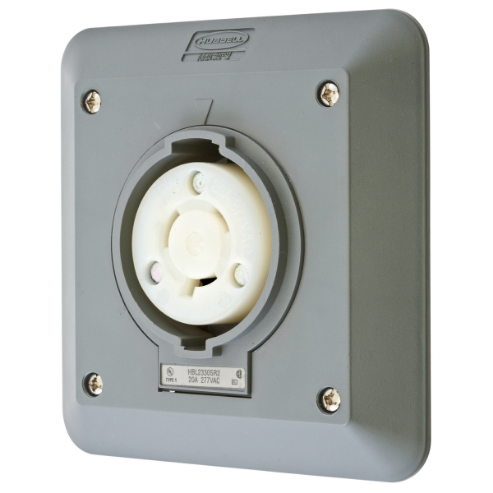

Item | Receptacle |
Amps | 20A |
Connectivity | Back Wired Screw Terminals |
Height | 2.22" |
Length | 5 3/25" |
Material | Thermoplastic |
Max. Hp | 2 hp |
Mounting | Screw Mounting |
Nema Rating | NEMA L7-20R |
Number Of Poles | 2 |
Number Of Wires | 3 |
Phase | 1 |
Voltage | 277V |
Wattage | 5540 W |
Width | 5 3/25" |
Wire Size | 16 AWG to 8 AWG |
Ship weight (kg) | 0.27 |
Ship height (cm) | 5.64 |
Ship length (cm) | 13 |
Ship width (cm) | 13 |
Country of Origin | US |
