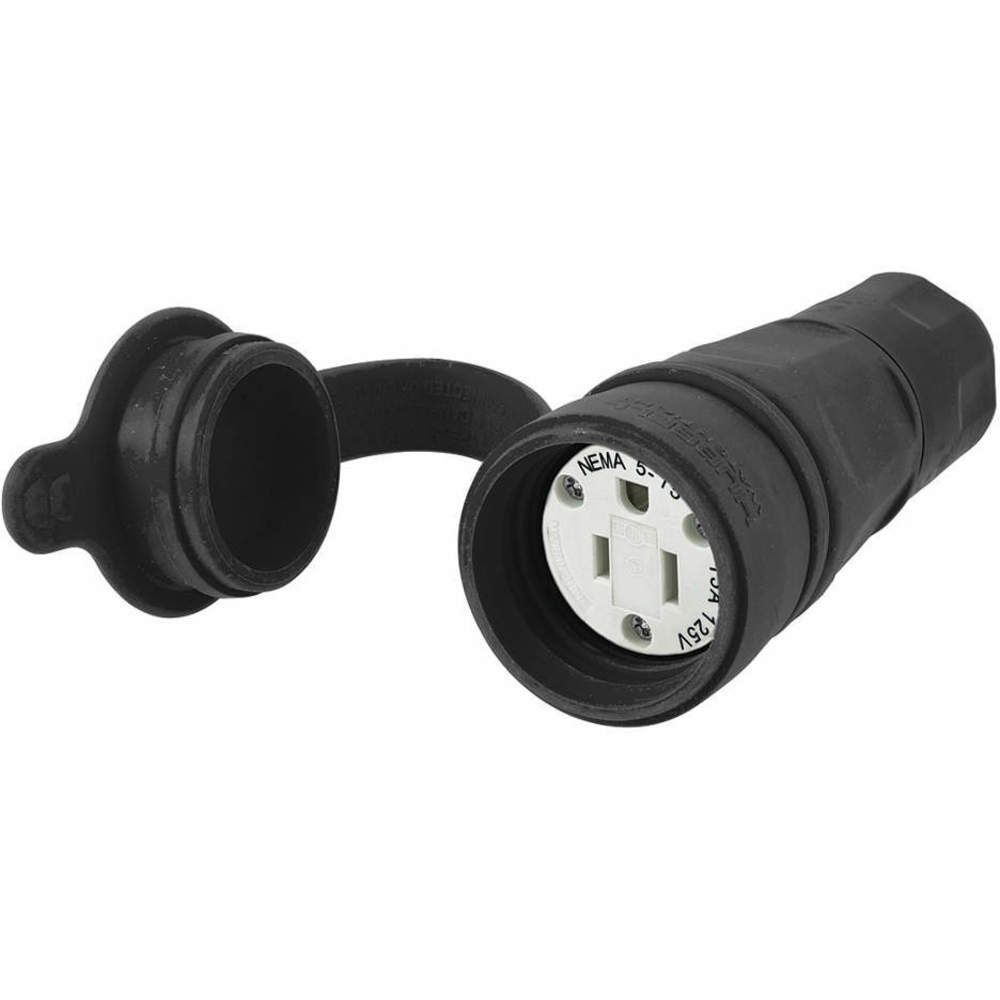

HUBBELL WIRING DEVICE-KELLEMS HBL15W47BK Staight Blade Connector, Watertight, 2 Pole, 15A, Black
Get it by Tuesday, Jun 17
€93.27 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Watertight Straight Blade Connector |
| Amps | 15A |
| Antimicrobial | No |
| Color | Black |
| Cord Size | 0.3" to 0.625" |
| Grade | Grade Industrial |
| Material | TPE, Valox |
| Nema Plug Configuration | 5-15R |
| Nema Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Power Indicator | No |
| Voltage | 125V AC |
| Wiring Type | Standard |
| Cap Type | Press On Cap |
| Connection Orientation | Straight |
| Contact Material | Nickel-Plated Brass |
| Current Rating | 15A |
| For Maximum Cable Diameter | 0.63" |
| For Minimum Cable Diameter | 0.38" |
| Horsepower Rating | 1/2 hp |
| Housing Color | Black |
| Housing Material | Thermoplastic Elastomer |
| Insulation Material | Nylon |
| Ip Rating | IP69K |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Nema Receptacle Configuration | NEMA 5-15R |
| Polarized | Yes |
| Power Indicating Light | No |
| Resistance Properties | Corrosion Resistant, Impact Resistant |
| Shrouded | Yes |
| Standards | ANSI, CSA CERTIFIED, NEMA WD-1, NEMA WD-6, UL LISTED |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 20.32 |
| Country of Origin | CN |
| Product | Model | Amps | Color | Cord Size | Current Rating | Grade | Height | Hp | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL15W47 | 15 | Yellow | 0.300 to 0.655" | 15 A | General | 4.03" | 0.5 | 20 | €75.16 | |
 |
HBL15W33 | 20 | Yellow | 0.300 to 0.655" | 20 A | General | 3" | 1 | 20 | €76.89 | |
 |
HBL15W33A | 20 | Yellow | 0.300" to 0.625" | 20 A | Industrial | - | - | 65, 66, 67 | €75.76 | |
 |
HBL15W47A | 15 | Yellow | 0.300" to 0.625" | 15 A | Industrial | - | - | 65, 66, 67 | €71.17 | |
 |
HBL15W48 | 20 | Yellow | 0.300" to 0.625" | 20 A | Industrial | - | - | 65, 66, 67 | €86.54 | |
 |
HBL15W49 | 15 | Yellow | 0.300" to 0.625" | 15 A | Industrial | - | - | 65, 66, 67 | €82.28 |
