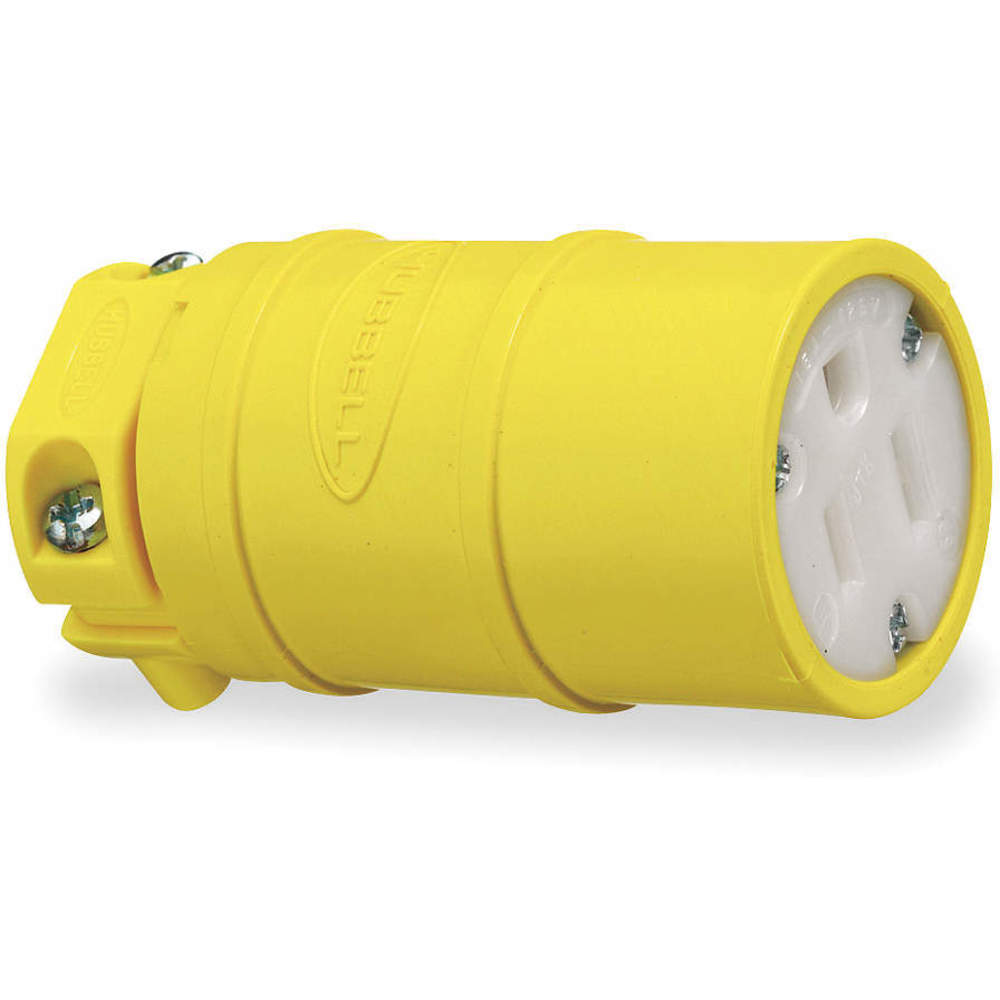

HUBBELL WIRING DEVICE-KELLEMS HBL1547 Dust Tight Connector, Industrial Grade, Straight, 15A 125V, 5-15R, Yellow, 1 Pk
Get it by Monday, Jun 16
€32.88 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Dust Tight Connector |
| Antimicrobial | No |
| Color | Yellow |
| Cord Size | 0.3" to 0.655" |
| Grade | General |
| Hp | 1/2 hp |
| Material | PVC |
| Nema Rating | NEMA 5-15R |
| Phase | 1 |
| Voltage | 125V AC |
| Wiring Type | Standard |
| Cap Type | No Cap Or Cover |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Current Rating | 15A |
| For Environment | Dry |
| For Location | Indoor |
| Grounding | Grounded |
| Horsepower Rating | 1/2 hp |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Length | 3" |
| Polarized | Yes |
| Power Indicating Light | No |
| Resistance Properties | Dust Ignition Proof, Moisture Resistant, Weather Resistant |
| Standards | CSA CERTIFIED, NEMA WD-6, UL LISTED |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 4.09 |
| HS code | 8536698000 |
| Country of Origin | US |
| Product | Model | Amps | Hp | Nema Configuration | Nema Rating | Phase | Price | |
|---|---|---|---|---|---|---|---|---|
 |
HBL1533 | 20 | 1 | 5-20R | 5-20R | Single Phase | €51.40 |
