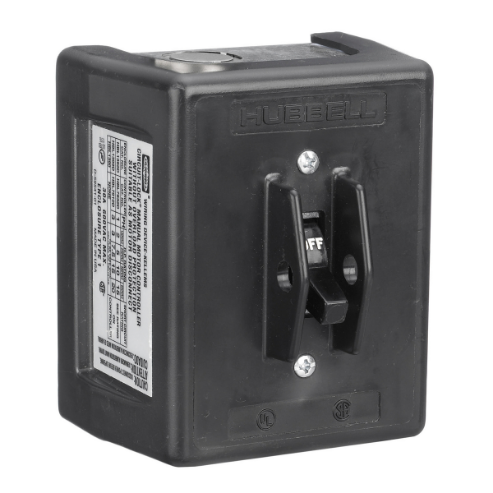

HUBBELL WIRING DEVICE-KELLEMS HBL1392D Manual Motor Switch, With Enclosure, 2 Pole, 30 A, 600 VAC, Black
Get it by Wednesday, Jun 18
€138.90 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Manual Motor Switch |
| Amps Rating | 30A |
| Construction | Fabricated |
| Depth | 3 2/5" |
| Dimension | 4.52" x 3.97" x 3.43" |
| Height | 3.43" |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 230v | 5 hp |
| Length | 4 13/25" |
| Max. Hp | 15 hp |
| Max. Voltage | 600V AC |
| Min. Number Of Cycles | 10000 |
| Mounting Style | Screw |
| Number Of Poles | 2 |
| Operating Temp. | -75°C to -40°C |
| Operator | Toggle |
| Phase | 1 |
| Pilot Light | No |
| Sensitivity | No |
| Starter Type | NEMA |
| Wattage | 18000 W |
| Width | 3.97" |
| Enclosure Material | Non Metallic |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Single Phase - 240v Ac | 5 hp |
| Horsepower @ Three Phase - 208v Ac | Not Rated |
| Horsepower @ Three Phase - 240v Ac | Not Rated |
| Horsepower @ Three Phase - 480v Ac | Not Rated |
| Horsepower @ Three Phase - 600v Ac | Not Rated |
| Hub Diameter | 1/2" |
| Hub Type | Feed Through |
| Max Current (ac) | 30A |
| Maximum Operating Temperature | 167°F |
| Maximum Voltage Rating | 600V AC |
| Minimum Operating Temperature | -40°F |
| Mounting Hole Diameter | 0.26" |
| Mounting Hole Distance - Height | 2.38" |
| Nema Enclosure Rating | 1 |
| Number Of Gangs | 1 |
| Overall Depth | 3.43" |
| Overall Height | 3.43" |
| Overall Width | 3.97" |
| Phase Loss Sensitivity | No |
| Series | Circuit-Lock |
| Standards | CSA C22.2 NO 14, UL 508 |
| Starter Style | NEMA |
| Wire Termination Type | Screw |
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 8.71 |
| Ship length (cm) | 11.48 |
| Ship width (cm) | 10.08 |
| HS code | 8536509040 |
| Country of Origin | US |
| Product | Model | Amps Ac | Current Rating | Depth | Enclosure Type | Exposure Conditions | Height | Hp @ 1 Phase - 230v | Hp @ 3 Phase - 230v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL1372D | 30 | 30 A | 3.1" | NEMA 1 | Indoor Dry | 3.15" | 5 | - | €80.61 | |
 |
HBL1379D | 30 | 30 A | 3.1" | NEMA 1 | Indoor Dry | 3.15" | 5 | 7.5 | €231.22 | |
|
HBL1389D | 30 | 30 A | 3.1" | NEMA 1 | Indoor Dry | 3.4" | 5 | 7.5 | €209.57 | |
 |
HBL13R22D | 30 | 30 A | 3" | NEMA 3/3R | Indoor and Outdoor | 4.55" | 5 | - | €192.28 | |
 |
HBL13R23D | 30 | 30 A | 4.5" | NEMA 3/3R | Indoor and Outdoor | 4.55" | 5 | 7.5 | €201.36 | |
 |
HBL7843D | 40 | 40 A | 2.4" | Open | Indoor Dry | 3.7" | 5 | 7.5 | €233.47 | |
 |
HBL7852D | 50 | 50 A | 1.53" | Open | Indoor Dry | 3.78" | 5 | - | €185.76 |
